GOODWE
RESIDENTIAL ONGRID SOLUTION- GW5000-SDT-30
Barcode:
57964036
Key Features
Rated Output: 5kW
Type: 3-Phase On-Grid Solar Inverter
MPPT: 2 MPPTs
Max. DC Input Voltage: 1,100V
Max. Efficiency: Up to 98.4%
DC Oversizing: Up to 150%
Natural Cooling: Fanless, quiet operation
IP66 Protection: Suitable for outdoor installation
Remote Shutdown: Integrated
Surge Protection: Type III, with Type II optional
AFCI: Optional
Smart Monitoring: GoodWe SEMS monitoring platform
Application: Residential rooftop and grid-connected solar systems
Share:
Product Description:

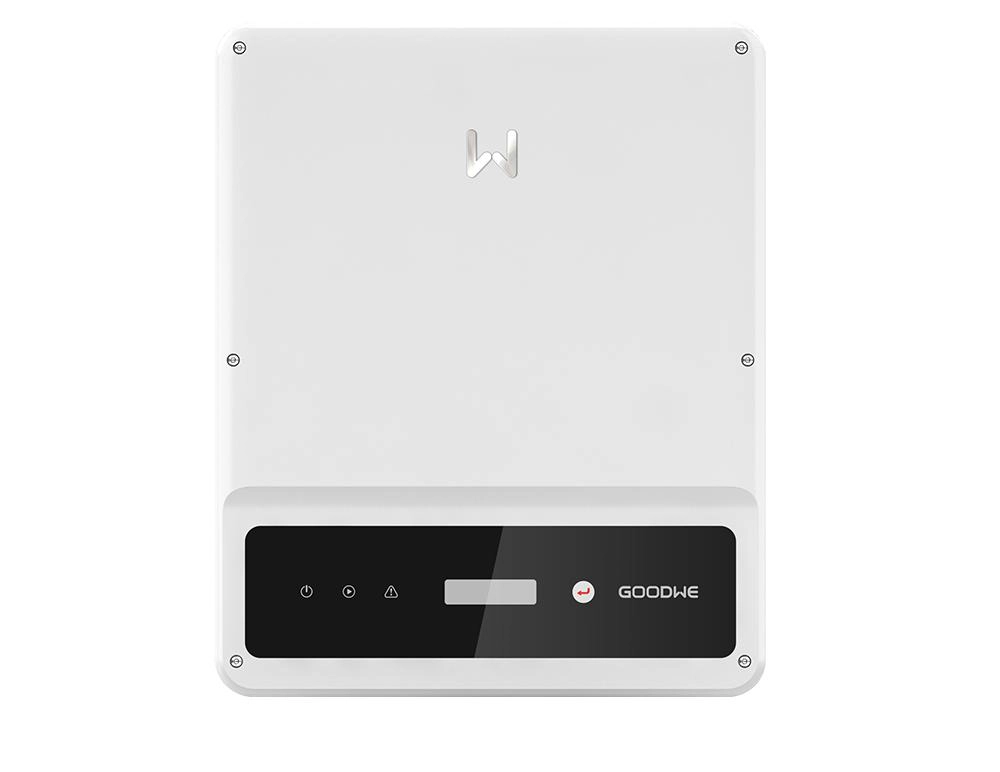

GoodWe GW5000-SDT-30 Residential On-Grid Solar Solution
Product Description
The GoodWe GW5000-SDT-30 Residential On-Grid Solar Solution is a reliable 5kW three-phase solar inverter solution designed for grid-connected residential and small commercial solar installations. It converts the DC electricity generated by solar panels into usable AC electricity, allowing users to make effective use of clean solar energy.
Designed for rooftop and on-grid PV systems, the GW5000-SDT-30 offers efficient power conversion, flexible solar panel compatibility, and a practical design for installation. Its three-phase configuration makes it suitable for properties with compatible three-phase electrical systems.
Key Features
5kW three-phase on-grid solar inverter
Designed for residential and small commercial systems
Efficient DC-to-AC power conversion
Dual MPPT technology
Supports multiple PV strings
Wide PV operating voltage range
Compact and practical design
Suitable for grid-connected solar systems
Product Highlights
5kW Power Capacity: Suitable for residential and small commercial solar applications.
Three-Phase Operation: Designed for compatible three-phase electrical systems.
Dual MPPT: Helps optimize solar energy harvesting from different PV string configurations.
Efficient Conversion: Converts solar-generated DC electricity into usable AC power.
Flexible PV Configuration: Supports multiple solar panel string arrangements.
On-Grid Operation: Works alongside the utility grid for grid-connected solar generation.
Rooftop Ready: Suitable for residential and small commercial rooftop installations.
Ideal For
Residential rooftop solar systems
Three-phase homes
Small commercial buildings
Grid-connected PV installations
Net-metering applications
Offices and small businesses
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW5000-SDT-30 |
Type | Residential On-Grid Solar Inverter |
Phase | Three Phase |
Rated Output Power | 5,000W / 5kW |
Max. DC Input Power | 7,500W |
Max. DC Input Voltage | 1,100V |
MPPT Voltage Range | 200–1,000V |
Start-up Voltage | 180V |
MPPT Trackers | 2 |
Strings per MPPT | 1 |
Max. Input Current | 12.5A per MPPT |
Max. Short-Circuit Current | 15.6A per MPPT |
Nominal AC Voltage | 220/380V, 230/400V |
Grid Frequency | 50/60Hz |
Rated AC Output | 5,000W |
Max. AC Output Power | 5,500VA |
Max. Output Current | 8.0A |
Max. Efficiency | Up to 98.4% |
European Efficiency | Up to 98.0% |
Power Factor | >0.99 |
THD | <3% |
Cooling | Natural Convection |
Protection Rating | IP65/IP66 |
Operating Temperature | -30°C to +60°C |
Communication | RS485, Wi-Fi/LAN/4G options |
DC Connector | MC4 |
Weight | Approx. 15.1 kg |
Application | Residential rooftop & grid-connected solar |
