GOODWE

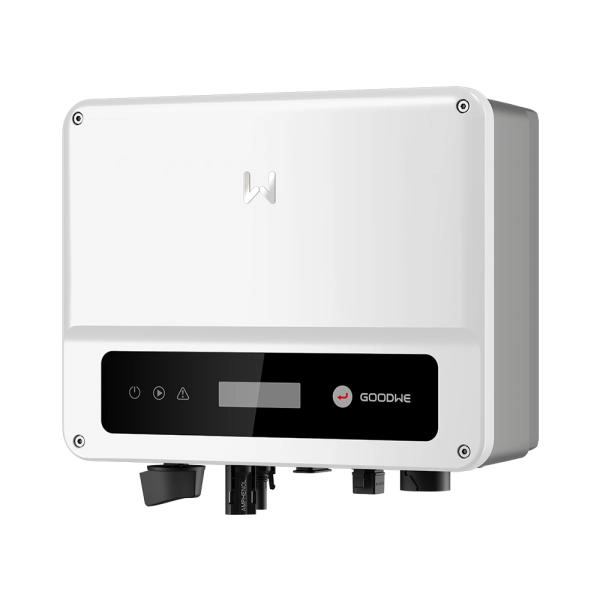

RESIDENTIAL ONGRID SOLUTION- GW3000-XS-30
Barcode:
55789806
Key Features
Rated Output: 3kW
Single-Phase On-Grid Inverter
1 MPPT / 1 String
Max. DC Input: 600V
Max. DC Input Current: 16A
DC Oversizing: Up to 200%
Max. Efficiency: Up to 97.6%
Ultra-Quiet: <20dB
IP66 Protection: Dust & water resistant
AFCI Protection: Advanced DC arc-fault protection
Smart Monitoring: Wi-Fi/LAN/4G/Bluetooth options
Compact & Lightweight: Approx. 4.6kg
Bangladesh Ready: GoodWe states its grid-tie inverters comply with SREDA/BSTI requirements for Bangladesh.
Share:
Product Description:
GoodWe GW3000-XS-30 Residential On-Grid Solar Solution
Product Description
The GoodWe GW3000-XS-30 Residential On-Grid Solar Solution is a compact and efficient 3kW single-phase solar inverter solution designed for residential grid-connected solar systems. It converts the DC electricity generated by solar panels into usable AC power, helping homes make better use of clean solar energy.
Designed for residential rooftop installations, the GW3000-XS-30 combines efficient solar power conversion with a compact design and convenient installation. It is suitable for homes and small properties looking to reduce reliance on conventional grid electricity while utilizing renewable solar power.
Key Features
3kW single-phase on-grid solar inverter
Designed for residential solar systems
Efficient DC-to-AC power conversion
Compact and lightweight design
Single MPPT configuration
Wide PV operating voltage range
Grid-connected solar operation
Suitable for rooftop solar installations
Product Highlights
3kW Power Capacity: Suitable for residential grid-connected solar applications.
Single-Phase Operation: Designed for compatible single-phase electrical systems.
Efficient Conversion: Converts solar-generated DC electricity into usable AC power.
Compact Design: Convenient for residential installations with limited space.
Solar Optimization: MPPT technology helps maximize energy harvesting from the connected solar panels.
On-Grid Solution: Works with the utility grid to support household electricity requirements.
Residential Application: Suitable for homes and small-scale solar installations.
Ideal For
Residential rooftop solar systems
Homes and small properties
Grid-connected PV systems
Net-metering applications
Small offices and commercial spaces
Renewable energy projects
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW3000-XS-30 |
Type | Residential On-Grid Solar Inverter |
Phase | Single Phase |
Rated Output Power | 3,000W / 3kW |
Max. DC Input Power | 6,000W |
Max. DC Input Voltage | 600V |
MPPT Voltage Range | 40–550V |
Start-up Voltage | 50V |
Max. Input Current | 16A |
Max. Short-Circuit Current | 25A |
MPPT Trackers | 1 |
Strings per MPPT | 1 |
Max. AC Active Power | 3,300W |
Nominal AC Voltage | 220/230/240V |
Grid Frequency | 50/60Hz |
Max. Output Current | 13.7A |
Max. Efficiency | 97.6% |
European Efficiency | 97.1% |
THD | <3% |
Cooling | Natural Convection |
Communication | RS485, Wi-Fi, LAN, 4G & Bluetooth options |
Protection Rating | IP66 |
Operating Temperature | -25°C to +60°C |
Noise Level | <20dB |
Dimensions (W×H×D) | 306 × 218 × 119 mm |
Weight | Approx. 4.6 kg |
DC Connector | MC4 |
Application | Residential rooftop & grid-connected solar |
Contact for more details
Call now: 01711305205
