GOODWE
RESIDENTIAL ONGRID SOLUTION- GW10K-SDT-30
Barcode:
58374489
Key Features
Rated Output: 10kW
Type: 3-Phase On-Grid Solar Inverter
2 MPPTs / 2 Strings
Max. DC Input Voltage: 1,100V
Max. Input Current: 22A per MPPT
DC Oversizing: Up to 150%
Max. AC Output: 11kW
Max. Efficiency: Up to 98.5%
Fanless Natural Cooling: Quiet operation
IP66 Protection: Suitable for outdoor installation
AFCI: Optional
Remote Shutdown: Integrated
Smart Monitoring: RS485 with 4G communication options
Application: Residential rooftop and small commercial on-grid solar systems.
Share:
Product Description:

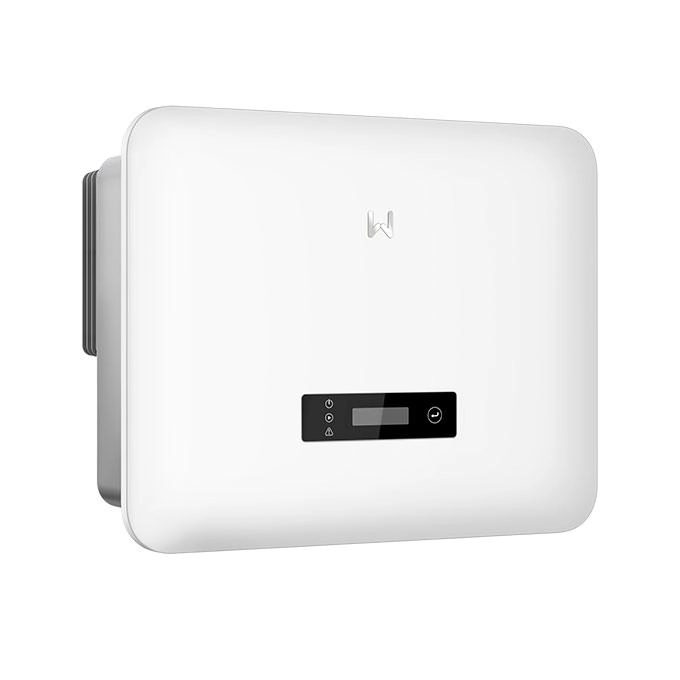

GoodWe GW10K-SDT-30 Residential On-Grid Solar Solution
Product Description
The GoodWe GW10K-SDT-30 Residential On-Grid Solar Solution is a powerful 10kW three-phase solar inverter solution designed for residential and small commercial grid-connected solar installations. It converts DC electricity generated by solar panels into usable AC electricity, helping properties utilize clean solar energy while remaining connected to the utility grid.
With its three-phase configuration, efficient power conversion, and flexible solar input design, the GW10K-SDT-30 is suitable for larger residential properties and small commercial applications. It provides a practical solution for rooftop PV systems, energy cost reduction, and net-metering applications.
Key Features
10kW three-phase on-grid solar inverter
Designed for residential and small commercial systems
Efficient DC-to-AC power conversion
Dual MPPT technology
Multiple PV string support
Wide PV operating voltage range
Grid-connected operation
Practical and reliable design
Product Highlights
10kW Power Capacity: Suitable for larger residential and small commercial solar systems.
Three-Phase Operation: Designed for compatible three-phase electrical installations.
Dual MPPT: Helps optimize solar energy harvesting from different PV arrays.
Efficient Conversion: Converts solar-generated DC power into usable AC electricity.
Flexible PV Input: Supports multiple solar panel string configurations.
On-Grid Performance: Works alongside the utility grid for efficient solar energy utilization.
Net-Metering Ready: Suitable for compatible grid-connected and net-metering applications.
Ideal For
Large residential properties
Residential rooftop solar systems
Small commercial buildings
Offices and businesses
Grid-connected PV installations
Net-metering systems
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW10K-SDT-30 |
Type | Residential On-Grid Solar Inverter |
Phase | Three Phase |
Rated Output Power | 10,000W / 10kW |
Max. DC Input Power | 15,000W |
Max. DC Input Voltage | 1,100V |
MPPT Voltage Range | 140–1,000V |
Start-up Voltage | 180V |
MPPT Trackers | 2 |
Strings per MPPT | 1 |
Max. Input Current | 22A per MPPT |
Max. Short-Circuit Current | 30A per MPPT |
Max. AC Output Power | 11,000W |
Nominal AC Voltage | 220/380V, 230/400V |
Grid Frequency | 50/60Hz |
Max. Output Current | 16A |
Max. Efficiency | Up to 98.5% |
Weight | 15.1 kg |
European Efficiency | Up to 98.2% |
Power Factor | >0.99 |
THD | <3% |
Cooling | Natural Convection |
Protection Rating | IP66 |
Operating Temperature | -30°C to +60°C |
Communication | RS485, Wi-Fi/LAN/4G options |
DC Connector | MC4 |
Application | Residential rooftop & small commercial solar |
