GOODWE
RESIDENTIAL OFFGRID SOLUTION- GW6000-EO-G20
Barcode:
21680867
Key Features
6kW rated output power
Single-phase off-grid inverter
48V battery system
Supports Li-Ion & Lead-acid batteries
12kW maximum PV input — 200% PV oversizing
2 MPPTs
21A PV input current per MPPT
98.6% maximum efficiency
≤4 ms on/off-grid switching
IP66 protection
Built-in GFCI
Type III AC/DC surge protection
4.3-inch touchscreen
Wi-Fi + Bluetooth + RS485
CAN communication for BMS
Supports generator connection
Up to 10 units parallel operation
Suitable for residential backup and off-grid solar systems
Share:
Product Description:

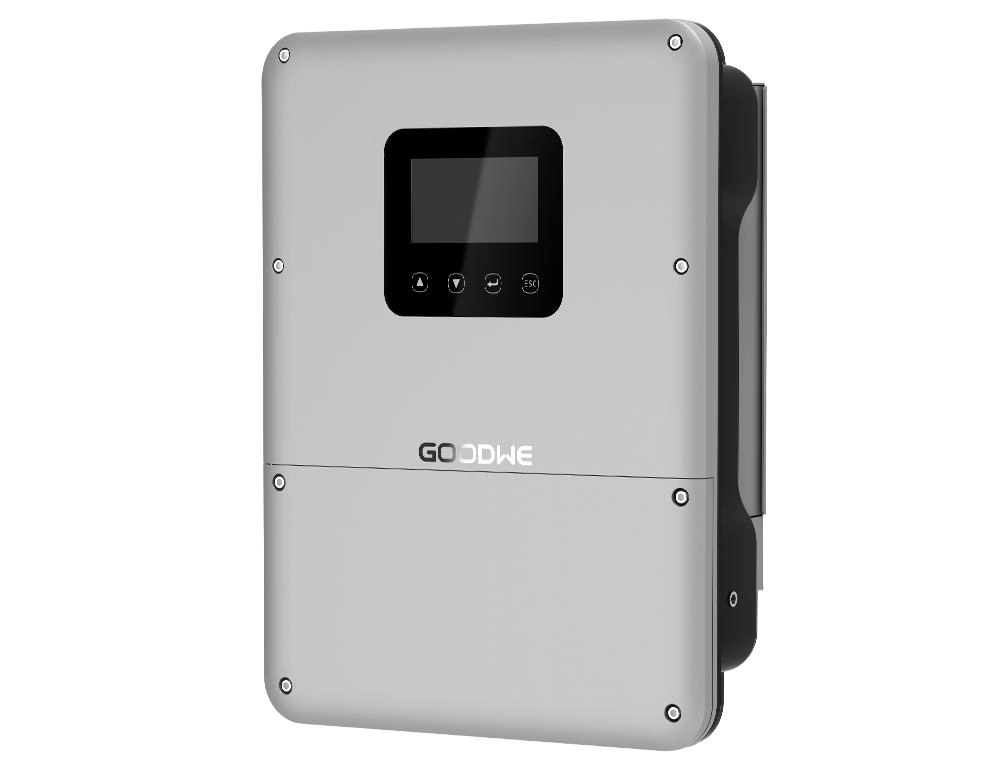

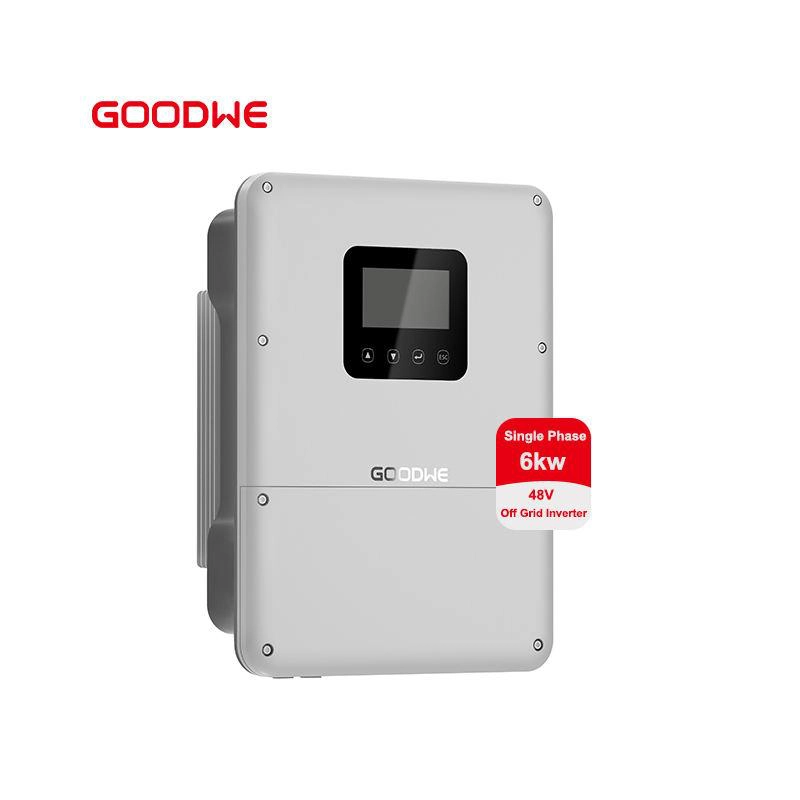

GoodWe GW6000-EO-G20 Residential Off-Grid Solar Solution
Product Description
The GoodWe GW6000-EO-G20 Residential Off-Grid Solar Solution is a 6kW off-grid solar inverter solution designed to provide reliable and independent power for homes and remote residential applications. It is designed to utilize solar energy for household electricity needs and can be paired with compatible battery storage systems for backup power.
With its higher power capacity, the GW6000-EO-G20 is suitable for residential systems with greater energy requirements. It provides a practical solution for homes in areas with limited or unreliable grid electricity, as well as for backup and independent solar power applications.
Key Features
6kW off-grid solar inverter solution
Designed for residential applications
Supports solar energy utilization
Compatible with battery storage systems
Reliable backup power capability
Efficient energy management
Suitable for off-grid and remote locations
Practical residential design
Product Highlights
6kW Power Capacity: Suitable for residential systems with higher power demands.
Off-Grid Operation: Designed for locations with limited or unreliable grid access.
Solar Energy Support: Helps convert available solar energy into usable household electricity.
Battery Compatibility: Can be paired with compatible battery storage for extended backup.
Reliable Backup: Helps support essential household loads during power interruptions.
Flexible Application: Suitable for homes, remote properties, and independent solar systems.
Practical Design: Suitable for residential solar installations and backup applications.
Ideal For
Off-grid homes
Large residential properties
Remote locations
Solar backup systems
Rural and remote households
Emergency power applications
Areas with unreliable electricity
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW6000-EO-G20 / GW6K-EO-G20 |
Rated Output Power | 6 kW |
Battery Type | Li-Ion / Lead-acid |
Nominal Battery Voltage | 48 V |
Battery Voltage Range | 40–60 V |
Max. Charging Current | 130 A |
Max. Discharging Current | 130 A |
Max. Charging Power | 6.0 kW |
Max. Discharging Power | 6.6 kW |
Max. PV Input Power | 12 kW |
Max. PV Input Voltage | 530 V |
MPPT Voltage Range | 50–480 V |
PV Start-up Voltage | 60 V |
Max. MPPT Current | 21A / 21A |
Max. PV Short-Circuit Current | 26A / 26A |
Number of MPPTs | 2 |
Strings per MPPT | 1 |
Nominal AC Voltage | 220/230 V |
Grid Frequency | 50/60 Hz |
Rated AC Output | 6.0 kW / 6.0 kVA |
Max. AC Output Power | 6.6 kW |
Max. Off-Grid Output | 6.6 kVA (12 kVA for 10 sec) |
Max. Apparent Power from Grid | 8 kVA |
Max. Grid Current | 35 A |
Switching Time | ≤4 ms |
Max. Efficiency | 98.6% |
European Efficiency | 96.8% |
Weight | 13.0 kg |
Protection Rating | IP66 |
Cooling | Smart Fan cooling |
Communication | RS485, Wi-Fi, Bluetooth |
BMS Communication | CAN |
Application | Residential off-grid / backup solar |
