GOODWE
RESIDENTIAL HYBRID SOLUTION- GW8K-ET-L-G10
Barcode:
27820920
Key Features
8kW Three-Phase Hybrid Inverter
48V Low-Voltage Battery
Up to 16kW PV Input
2 MPPTs
20A MPPT Input per String
175A Max. Battery Charge/Discharge Current
8kW Max. Battery Charging Power
8.8kW Max. Battery Discharging Power
<4ms Seamless Backup Switching
AI-Driven AFCI 3.0
Up to 150% Unbalanced Output
Generator Compatibility
IP66 Protection
Wi-Fi + LAN + Bluetooth + RS485 + CAN
LFP (LiFePO₄) / Lead-Acid Battery Compatible
Share:
Product Description:

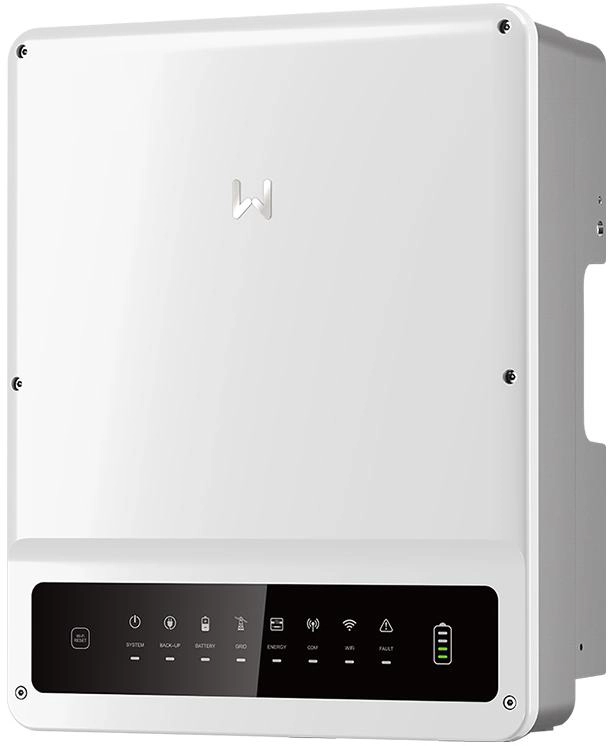

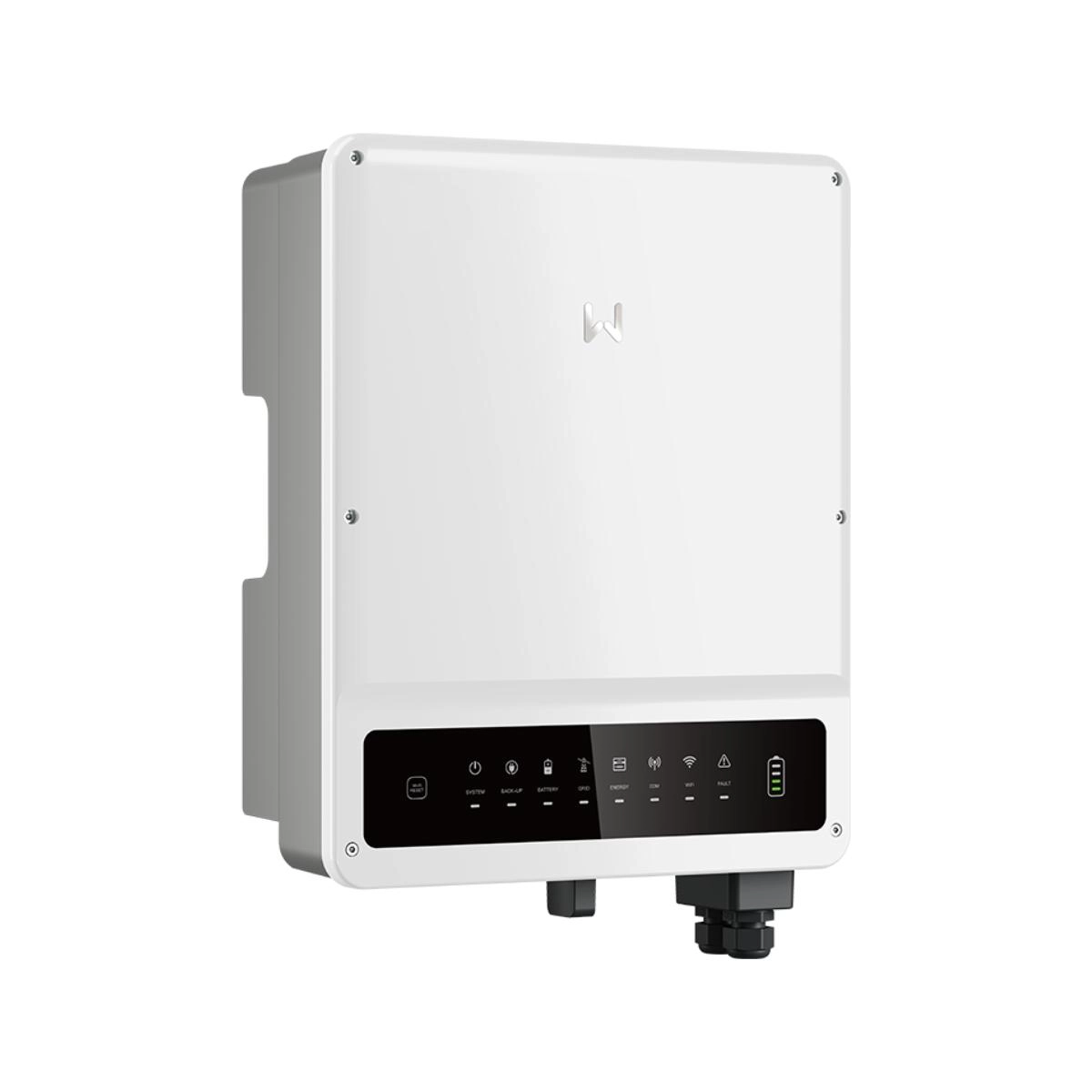

GoodWe GW8K-ET-L-G10 Residential Hybrid Solar Solution
Product Description
The GoodWe GW8K-ET-L-G10 is an 8kW residential hybrid solar solution designed to efficiently manage solar energy, battery storage, and grid electricity. It provides a flexible energy solution for homes that want to maximize renewable energy usage while maintaining reliable backup power.
The system integrates solar generation, battery storage, and grid power to help optimize household energy consumption. Excess solar energy can be stored in compatible batteries for later use, helping provide continuous and efficient power during periods of low solar generation or grid interruptions.
Key Features
8kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Three-Phase Energy Management
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
Residential & High-Power Applications
Product Highlights
8kW power capacity
Hybrid solar energy management
Solar, battery and grid integration
Battery storage support
Backup power capability
Efficient renewable energy utilization
Flexible household energy management
Suitable for modern residential solar systems
Ideal For
Residential homes
High-energy-consumption households
Solar + battery installations
Residential backup power systems
Energy storage applications
Grid-connected hybrid solar systems
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW8K-ET-L-G10 |
Product Type | 3-Phase Hybrid Solar Inverter |
Rated Output Power | 8kW |
Max. PV Input Power | 16kW |
Max. PV Input Voltage | 1000V |
MPPT Voltage Range | 150–850V |
PV Start-up Voltage | 180V |
Number of MPPTs | 2 |
Max. MPPT Current | 20A / 20A |
Max. MPPT Short-Circuit Current | 26A / 26A |
Battery Type | LFP (LiFePO₄) / Lead-Acid |
Nominal Battery Voltage | 48V |
Battery Voltage Range | 40–60V |
Max. Charge Current | 175A |
Max. Discharge Current | 175A |
Max. Charging Power | 8kW |
Max. Discharging Power | 8.8kW |
Nominal Grid Voltage | 400/380V, 3L/N/PE |
Max. Grid Apparent Power | 8.8kVA |
Backup Max. Apparent Power | 8.8kVA (16kVA for 10 sec.) |
Max. Efficiency | 97.8% |
MPPT Efficiency | 99.9% |
Backup Switching Time | <4ms |
Protection Rating | IP66 |
Cooling | Smart Fan Cooling |
Communication | Wi-Fi, LAN, Bluetooth, 4G, RS485, CAN |
BMS Communication | CAN |
Operating Temperature | -35°C to +60°C |
Noise Level | <45dB |
Weihgt | 42.2 kg |
Application | Residential Solar + Battery Storage |
