GOODWE
6kW 3-Phase Hybrid Inverter
Low-Voltage 48V Battery System
Up to 12kW PV Input
2 MPPTs
20A MPPT Current per MPPT
6.6kW Maximum Battery Discharge
135A Max. Charge/Discharge Current
Fast Backup Switching <4ms
AI-Driven AFCI 3.0
Up to 150% Unbalanced Output
Generator & Smart Load Support
IP66 Protection
BMS Communication via CAN
Suitable for Residential Solar + Battery Storage

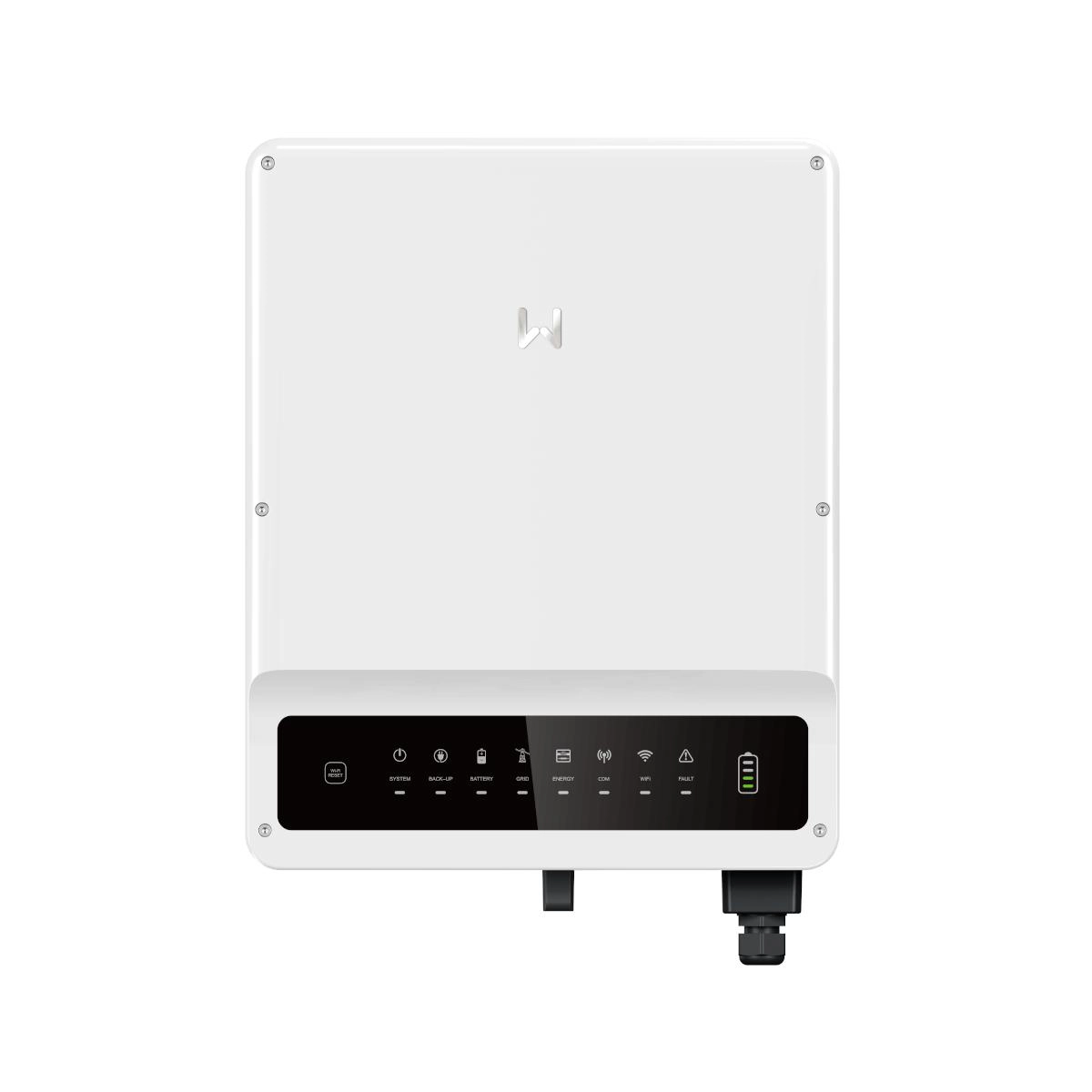

The GoodWe GW6K-ET-L-G10 is a 6kW residential hybrid solar solution designed to intelligently manage solar energy, battery storage, and grid electricity. It provides a flexible and efficient way for households to generate, store, and use renewable energy while maintaining reliable backup power.
By integrating solar panels, battery storage, and grid power, the system helps optimize household energy consumption. Excess solar energy can be stored in compatible batteries and used when solar generation is limited or during grid interruptions, providing greater energy independence and flexibility.
6kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Three-Phase Energy Management
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
Residential & High-Power Applications
6kW power capacity
Hybrid solar energy management
Solar, battery and grid integration
Supports battery energy storage
Reliable backup power support
Suitable for residential applications
Flexible energy management
Practical solution for modern solar systems
Residential homes
Large household energy systems
Solar + battery installations
Backup power applications
Energy storage systems
Grid-connected hybrid solar installations

Specification | Details |
|---|---|
Model | GW6K-ET-L-G10 |
Type | 3-Phase Hybrid Solar Inverter |
Rated Power | 6kW |
Max. PV Input Power | 12kW |
MPPT | 2 |
Max. MPPT Current | 20A / 20A |
Battery Type | LiFePO4 / Lead-Acid |
Nominal Battery Voltage | 48V |
Battery Voltage Range | 40–60V |
Max. Charge Current | 135A |
Max. Discharge Current | 135A |
Max. Charging Power | 6kW |
Max. Discharging Power | 6.6kW |
Max. Grid Apparent Power | 6.6kVA |
Max. Efficiency | 97.8% |
Weight | 42.2 kg |
Cooling System | Smart Fan Cooling |
Backup Switching Time | <4ms |
BMS Communication | CAN |
Protection | IP66 |
Noise Level | <45dB |
Application | Residential Solar + Energy Storage |
