GOODWE
RESIDENTIAL HYBRID SOLUTION- GW10K-ET-L-G10
Barcode:
28391105
Key Features
10kW Three-Phase Hybrid Inverter
48V Low-Voltage Battery
Up to 20kW PV Input
3 MPPTs
20A Maximum MPPT Current per MPPT
220A Max. Battery Charge/Discharge Current
10kW Max. Charging Power
11kW Max. Discharging Power
<4ms Backup Switching
AI-Driven AFCI 3.0
Up to 150% Unbalanced Output
Generator & Smart Load Support
IP66 Protection
CAN BMS Communication
Low Noise: <45dB
Suitable for Residential Solar + Battery Storage
Share:
Product Description:

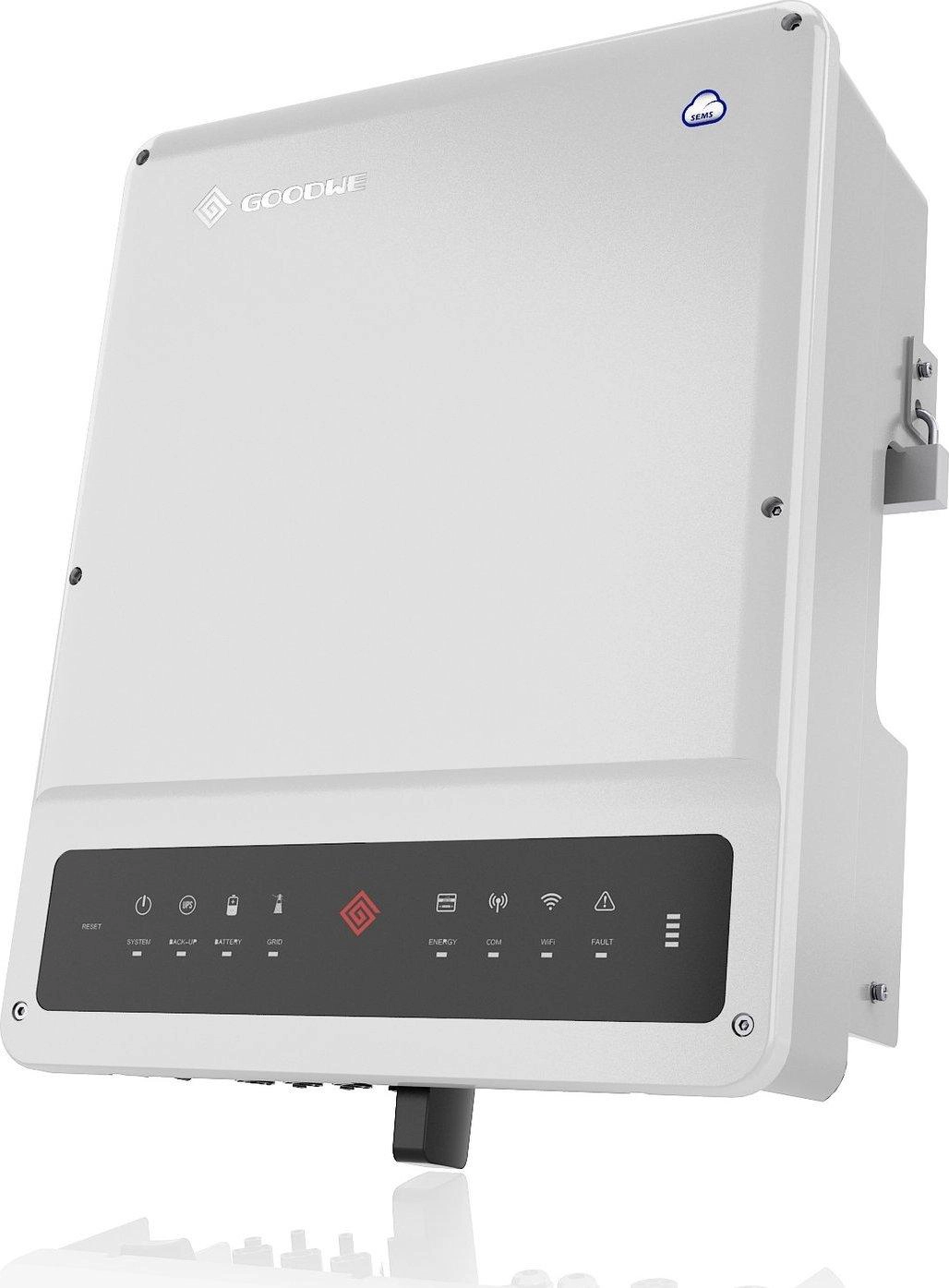

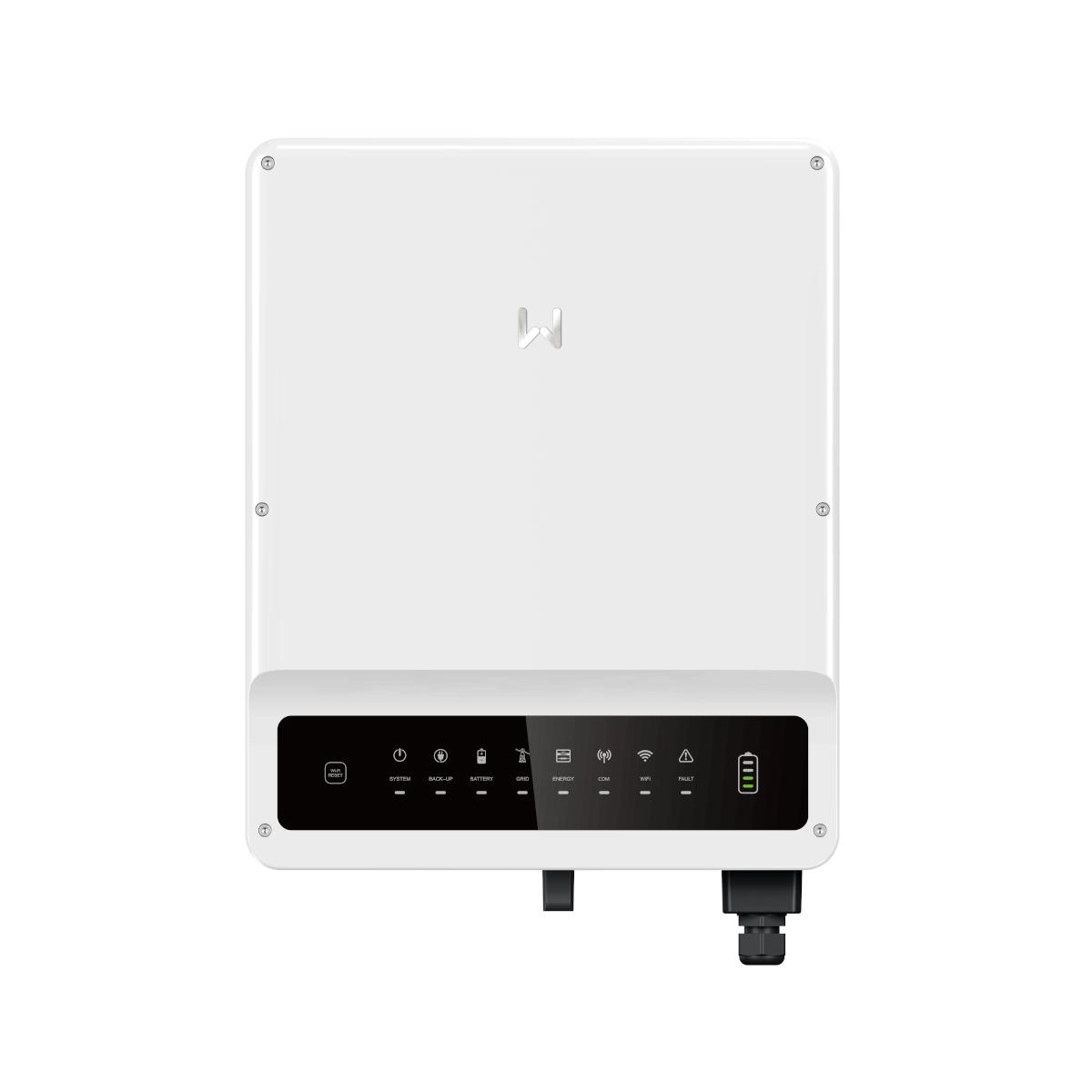

GoodWe GW10K-ET-L-G10 Residential Hybrid Solar Solution
Product Description
The GoodWe GW10K-ET-L-G10 is a 10kW residential hybrid solar solution designed to intelligently manage solar energy, battery storage, and grid electricity. It provides a reliable and flexible energy solution for homes requiring higher power capacity, energy storage, and backup functionality.
By integrating solar panels, battery storage, and grid power, the system helps optimize household energy usage. Solar energy can be used directly by household appliances, while excess energy can be stored in compatible batteries for later use. During grid interruptions, the system can provide backup power to supported loads.
Key Features
10kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Three-Phase Energy Management
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
Residential & High-Power Applications
Product Highlights
10kW power capacity
Hybrid solar energy management
Solar, battery and grid integration
Battery storage support
Backup power capability
Efficient renewable energy utilization
Flexible household energy management
Suitable for modern residential solar systems
Ideal For
Large residential homes
High-energy-consumption households
Solar + battery installations
Residential backup power systems
Energy storage applications
Grid-connected hybrid solar systems
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW10K-ET-L-G10 |
Product Type | 3-Phase Hybrid Solar Inverter |
Rated Power | 10kW |
Max. PV Input Power | 20kW |
Max. PV Input Voltage | 1000V |
MPPT Voltage Range | 150–850V |
PV Start-up Voltage | 180V |
Number of MPPTs | 3 |
Max. MPPT Current | 20A / 20A / 20A |
Max. MPPT Short-Circuit Current | 26A / 26A / 26A |
Battery Type | LFP (LiFePO₄) / Lead-Acid |
Nominal Battery Voltage | 48V |
Battery Voltage Range | 40–60V |
Battery Inputs | 1 |
Max. Charge Current | 220A |
Max. Discharge Current | 220A |
Max. Charging Power | 10kW |
Max. Discharging Power | 11kW |
Nominal Grid Output | 10kW |
Max. Grid Apparent Power | 11kVA |
Max. AC Output Power | 11kW |
Max. Efficiency | 97.8% |
Weight | 45.3 kg |
Cooling System | Smart Fan Cooling |
Backup Switching Time | <4ms |
BMS Communication | CAN |
Protection Rating | IP66 |
Noise Level | <45dB |
Application | Residential Solar + Energy Storage |
