GOODWE
C&I ONGRID SOLUTION- GW50KS-MT
Barcode:
38732201
Key Features
50kW rated AC output
Three-phase grid-tied inverter
5 MPPT trackers
2 strings per MPPT
1100V maximum DC input
75kW maximum PV input power
98.6% maximum efficiency
150% DC input oversizing capability
Up to 110% AC output overloading according to the current SMT series product information
String-level current monitoring
Type II DC & AC surge protection
Optional AFCI
Integrated DC switch
IP65 protection
Smart fan cooling
RS485 communication
Wi-Fi / 4G / PLC options
Suitable for commercial rooftops and ground-mounted PV systems
Share:
Product Description:

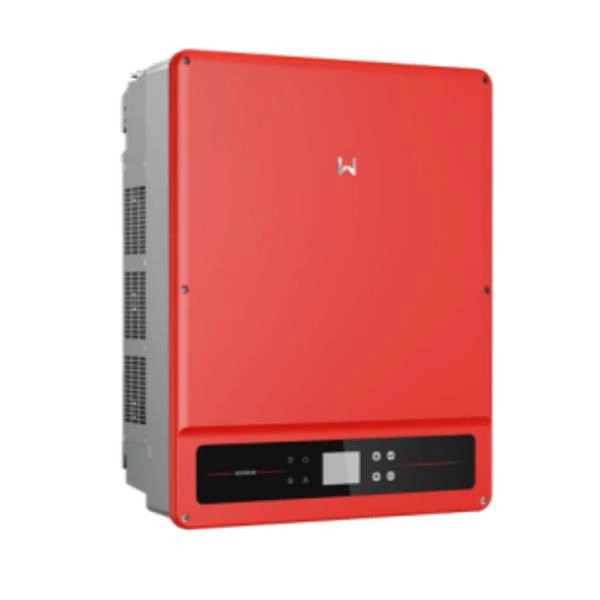

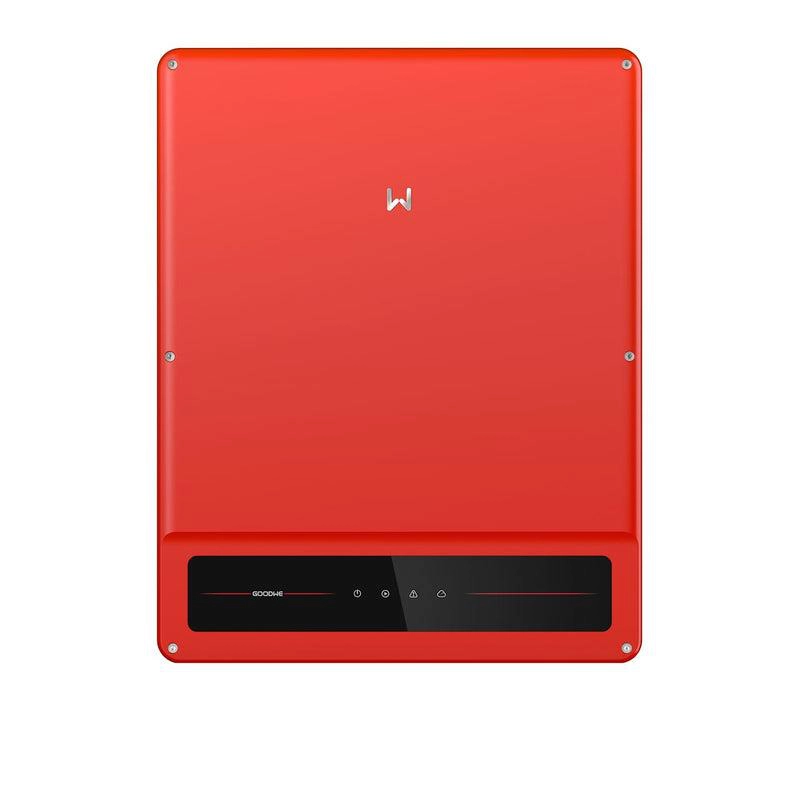

GoodWe GW50KS-MT C&I On-Grid Solar Solution
Product Description
The GoodWe GW50KS-MT is a 50kW three-phase on-grid solar solution designed for commercial and industrial (C&I) applications. It converts solar energy generated by photovoltaic panels into usable AC electricity and works in synchronization with the electrical grid.
With its high-capacity design and flexible PV configuration, the GW50KS-MT is suitable for businesses and facilities with substantial energy requirements. It helps maximize solar energy utilization and supports efficient renewable power generation for commercial and industrial environments.
Key Features
50kW On-Grid Solar Solution
Three-Phase Grid Connection
Commercial & Industrial Applications
High-Efficiency Solar Conversion
Multiple MPPT Support
Flexible PV System Configuration
Grid-Connected Operation
Suitable for Large Solar Installations
Product Highlights
50kW power capacity
Three-phase on-grid operation
Efficient DC-to-AC energy conversion
Multiple MPPT support
Flexible solar PV configuration
Designed for C&I applications
Suitable for large rooftop solar projects
Reliable renewable energy generation
Ideal For
Commercial buildings
Industrial facilities
Factories and warehouses
Large offices and business premises
Commercial rooftop solar systems
Large-scale grid-connected PV projects
product included:
Specifications:
Specification | GW50KS-MT |
|---|---|
Product Type | C&I On-Grid Solar Inverter |
Series | GoodWe SMT Series |
Rated Output Power | 50 kW |
Rated Apparent Power | 50 kVA |
Maximum PV Input Power | 75 kW |
Maximum DC Input Voltage | 1100 V |
MPPT Operating Voltage | 200–950 V |
Start-up Voltage | 180 V |
Nominal DC Input Voltage | 600 V |
Max. Input Current per MPPT | 30 A |
Max. Short-Circuit Current per MPPT | 37.5 A |
Number of MPPTs | 5 |
Strings per MPPT | 2 |
Maximum AC Active Power | 55 kW |
Maximum AC Apparent Power | 55 kVA |
Nominal AC Voltage | 230/400 V |
AC Grid | 3L/N/PE or 3L/PE |
Grid Frequency | 50/60 Hz |
Maximum Output Current | 80 A |
Power Factor | ~1, adjustable from 0.8 leading to 0.8 lagging |
Maximum THD | <3% |
Maximum Efficiency | 98.6% |
European Efficiency | 98.1% |
DC Surge Protection | Type II; Type I+II optional |
AC Surge Protection | Type II |
AFCI | Optional |
Cooling | Smart Fan Cooling |
Communication | RS485; Wi-Fi/4G/PLC optional |
Communication Protocol | Modbus-RTU (SunSpec compliant) |
Operating Temperature | -30°C to +60°C |
Maximum Operating Altitude | 3000 m |
Protection Rating | IP65 |
Dimensions (W × H × D) | 520 × 660 × 220 mm |
Weight | 55 kg |
Topology | Non-isolated |
Night Self-consumption | <1 W |
DC Connector | MC4, 4–6 mm² |
AC Connector | OT/DT terminal, max. 50 mm² |
