GOODWE

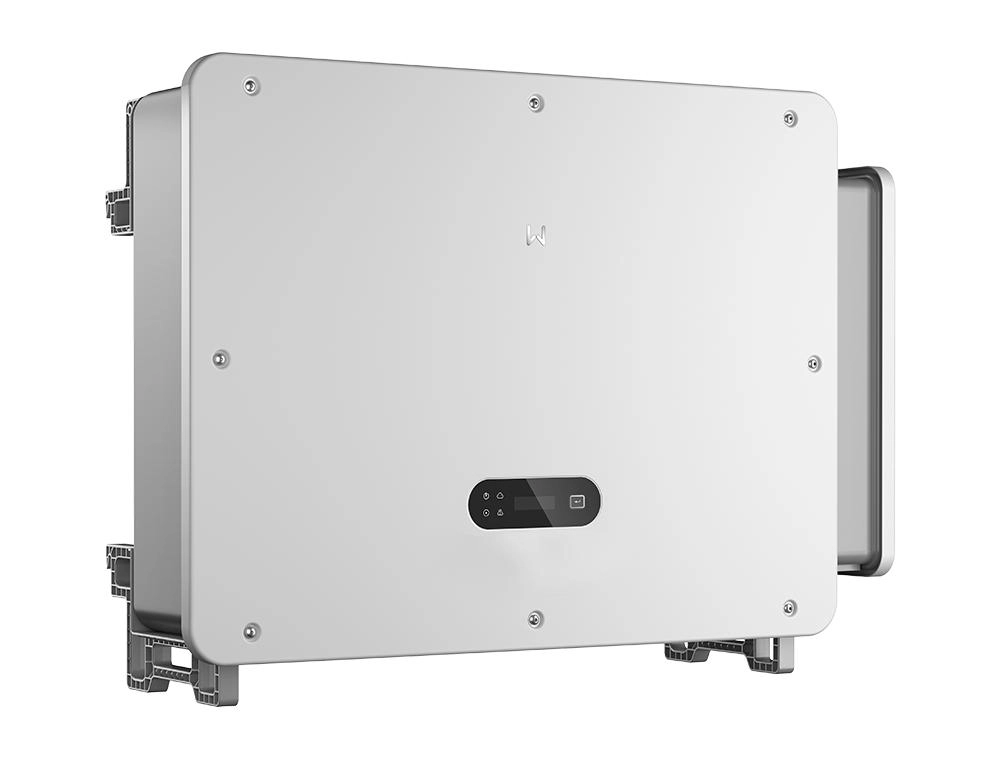

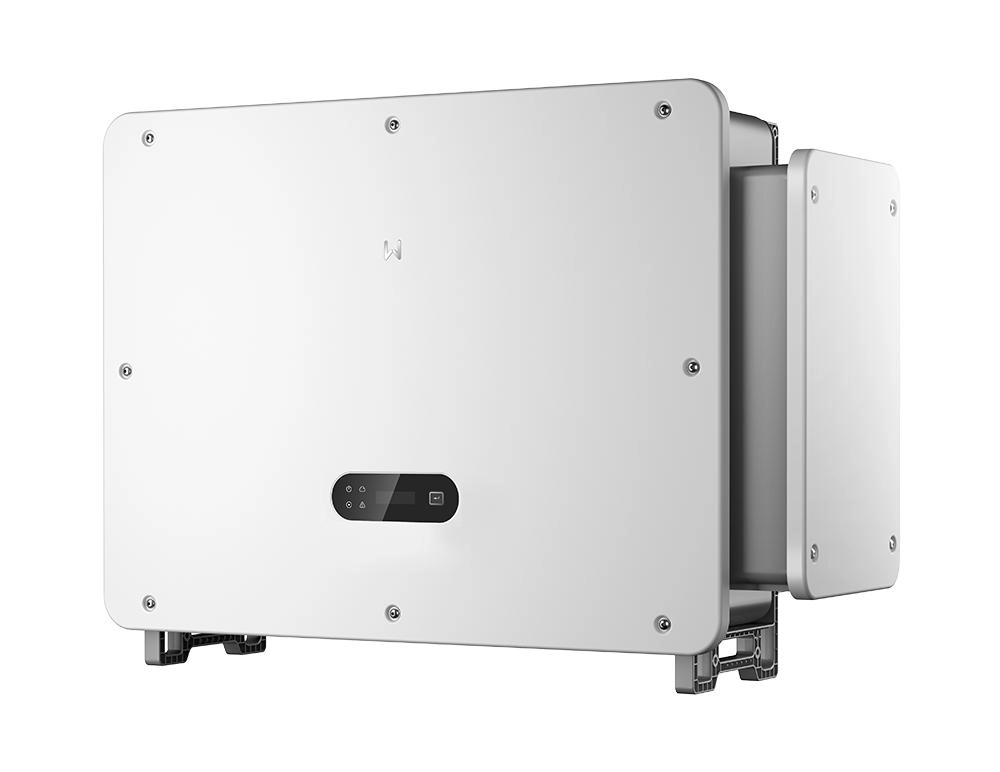

C&I ONGRID SOLUTION- GW150K-GT
Barcode:
40501579
Key Features
150kW rated output power
Three-phase on-grid string inverter
10 independent MPPTs
2 strings per MPPT
20 PV string inputs
1100V maximum DC input voltage
42A maximum input current per MPPT
21A maximum input current per string
225kW maximum recommended PV input power
99.0% maximum efficiency
110% AC output overloading capability
Type II DC & AC surge protection
Optional Type I + II DC SPD
Optional AI-driven AFCI 3.0
Optional PID recovery
Integrated DC switch
Integrated PV string current monitoring
IP66 protection
Smart fan cooling
RS485, Wi-Fi + LAN + Bluetooth and 4G communication options
Supports parallel connection through EzLink3000
Supports aluminum cable connection up to 400mm²
Share:
Product Description:
GoodWe GW150K-GT C&I On-Grid Solar Solution
Product Description
The GoodWe GW150K-GT is a 150kW three-phase on-grid solar solution designed for large commercial and industrial (C&I) photovoltaic installations. It converts solar energy generated by PV panels into usable AC electricity while operating in synchronization with the electrical grid.
With its high-capacity design, the GW150K-GT is suitable for large commercial buildings, industrial facilities, factories, warehouses, and other high-energy-demand applications. It enables businesses to utilize renewable solar power efficiently while supporting reliable grid-connected energy generation.
Key Features
150kW On-Grid Solar Solution
Three-Phase Grid Connection
Commercial & Industrial Applications
High-Capacity Solar Power Conversion
Multiple MPPT Support
Flexible PV System Configuration
Grid-Synchronized Operation
Suitable for Large-Scale Solar Projects
Product Highlights
150kW power capacity
Three-phase grid-connected operation
Efficient DC-to-AC conversion
Multiple MPPT support
Flexible PV system configuration
Designed for large C&I installations
Suitable for large rooftop solar projects
Efficient renewable energy utilization
Ideal For
Large commercial buildings
Industrial facilities
Factories and manufacturing plants
Warehouses and logistics facilities
Large rooftop solar installations
Commercial & industrial PV projects
product included:
Specifications:
Specification | GW150K-GT-G10 |
|---|---|
Product Type | C&I On-Grid String Inverter |
Series | GoodWe GT Series |
Rated Output Power | 150 kW |
Rated Apparent Power | 150 kVA |
Maximum PV Input Power | 225 kW |
Maximum DC Input Voltage | 1100 V |
MPPT Operating Voltage | 180–1000 V |
Start-up Voltage | 200 V |
Nominal DC Input Voltage | 600 V @ 380/400/415V AC; 720 V @ 480V AC |
Max. Input Current / MPPT | 42 A |
Max. Short-Circuit Current / MPPT | 52.5 A |
Number of MPPTs | 10 |
Strings per MPPT | 2 |
Total PV Strings | 20 |
Maximum AC Active Power | 165 kW |
Maximum AC Apparent Power | 165 kVA |
Nominal AC Voltage | 220/380, 230/400, 240/415, 277/480 V |
AC System | 3L/N/PE or 3L/PE |
Grid Frequency | 50/60 Hz |
Maximum Output Current | 250.7A @ 380V / 238.2A @ 400V / 229.6A @ 415V / 198.5A @ 480V |
Power Factor | 0.8 leading – 0.8 lagging |
Maximum THD | <3% |
Maximum Efficiency | 99.0% |
European Efficiency | 98.5% |
CEC Efficiency | 98.5% |
DC Surge Protection | Type II; Type I + II optional |
AC Surge Protection | Type II |
AFCI | Optional |
PID Recovery | Optional |
Cooling | Smart Fan Cooling |
Operating Temperature | -30°C to +60°C |
Maximum Operating Altitude | 4000 m |
Relative Humidity | 0–100% |
Protection Rating | IP66 |
Communication | RS485, Wi-Fi + LAN + Bluetooth, 4G + Bluetooth |
Communication Protocol | Modbus-RTU, Modbus-TCP |
Dimensions (W × H × D) | 995 × 758 × 358 mm |
Weight | ≤99 kg |
Topology | Non-isolated |
Night Self-Consumption | <2 W |
DC Connector | MC4, 4–6 mm² |
AC Connector | OT/DT terminal, max. 400 mm² |
