GOODWE
RESIDENTIAL HYBRID SOLUTION- GW6000-ES-C10
Barcode:
24121857
Key Features
6kW rated output power
Single-phase hybrid inverter
48V low-voltage battery system
Supports Li-Ion & Lead-acid batteries
12kW maximum PV input
2 MPPTs
20A max. input current per MPPT
6.6kVA maximum grid output
6kVA backup nominal output
6.6kW maximum battery discharge power
<4 ms seamless backup switching
IP66 protection
Optional AI-driven AFCI
3-in-1 port for generator, smart loads and on-grid connection
Microgrid operation with PV inverter
RS485, Wi-Fi, LAN & Bluetooth
Supports parallel connection up to 6 units
Suitable for residential solar + battery storage systems.
Share:
Product Description:

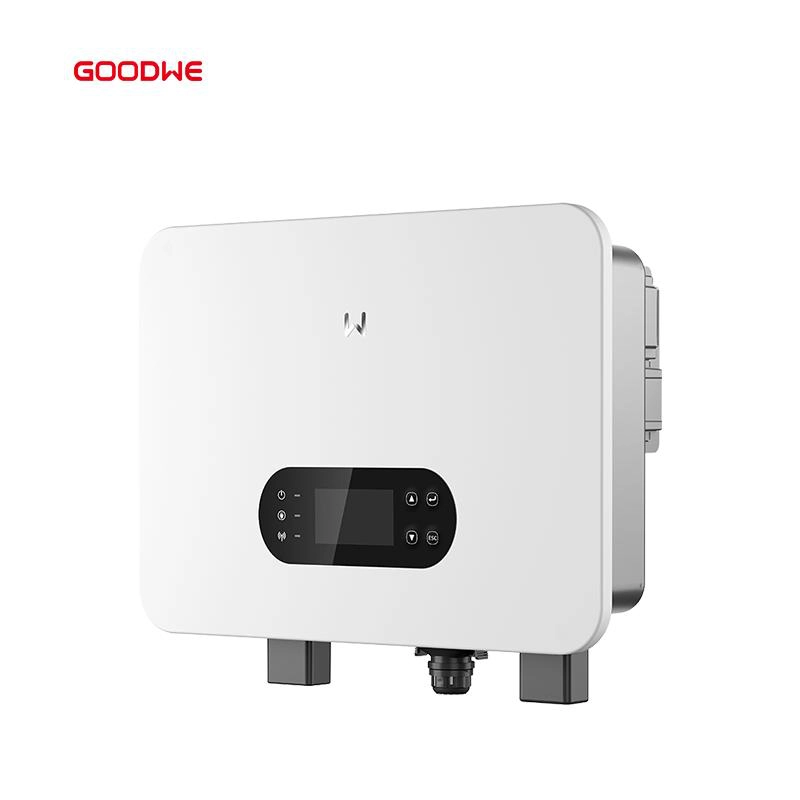

GoodWe GW6000-ES-C10 Residential Hybrid Solar Solution
Product Description
The GoodWe GW6000-ES-C10 is a 6kW residential hybrid solar solution designed to intelligently manage solar energy, battery storage, and grid power. It helps households make better use of solar energy while providing reliable backup power when grid electricity is unavailable.
With hybrid energy management, the system can coordinate power from solar panels, batteries, and the electrical grid, helping improve energy efficiency and provide greater flexibility for residential power needs. It is suitable for homes looking for solar energy generation, energy storage, and backup power in one integrated solution.
Key Features
6kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
Flexible Residential Power Solution
Compact & Practical Design
Product Highlights
6kW power capacity
Hybrid energy management
Supports battery storage
Uses solar power efficiently
Provides backup power support
Suitable for residential applications
Helps optimize household energy usage
Ideal For
Residential homes
Solar energy systems
Battery storage applications
Backup power systems
Homes with frequent power interruptions
Grid-connected hybrid solar installations
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW6000-ES-C10 |
Type | Single-Phase Hybrid Inverter |
Rated Output Power | 6.0 kW |
Nominal Grid Apparent Power | 6.0 kVA |
Max. AC Active Power | 6.6 kW |
Max. Grid Apparent Power | 6.6 kVA |
Max. PV Input Power | 12 kW |
Max. PV Input Voltage | 600 V |
MPPT Voltage Range | 60–550 V |
Start-up Voltage | 58 V |
Max. PV Input Current / MPPT | 20 A |
Max. PV Short-Circuit Current / MPPT | 26 A |
MPPT Trackers | 2 |
Strings per MPPT | 1 |
Battery Type | Li-Ion / Lead-acid |
Nominal Battery Voltage | 48 V |
Battery Voltage Range | 40–60 V |
Max. Charging Current | 140 A |
Max. Discharging Current | 140 A |
Max. Efficiency | 97.6% |
Max. Charging Power | 6.0 kW |
Max. Discharging Power | 6.6 kW |
Backup Nominal Power | 6.0 kVA |
Nominal AC Voltage | 220 / 230 / 240 V |
Grid Frequency | 50 / 60 Hz |
Max. AC Output Current | 30 A |
Power Factor | ~1, adjustable 0.8 leading to 0.8 lagging |
THD | <3% |
Weight | 15.5 kg |
Protection Rating | IP66 |
Communication | RS485, Wi-Fi, LAN, Bluetooth |
BMS Communication | CAN |
Application | Residential Hybrid Solar + Battery Storage |
