GOODWE

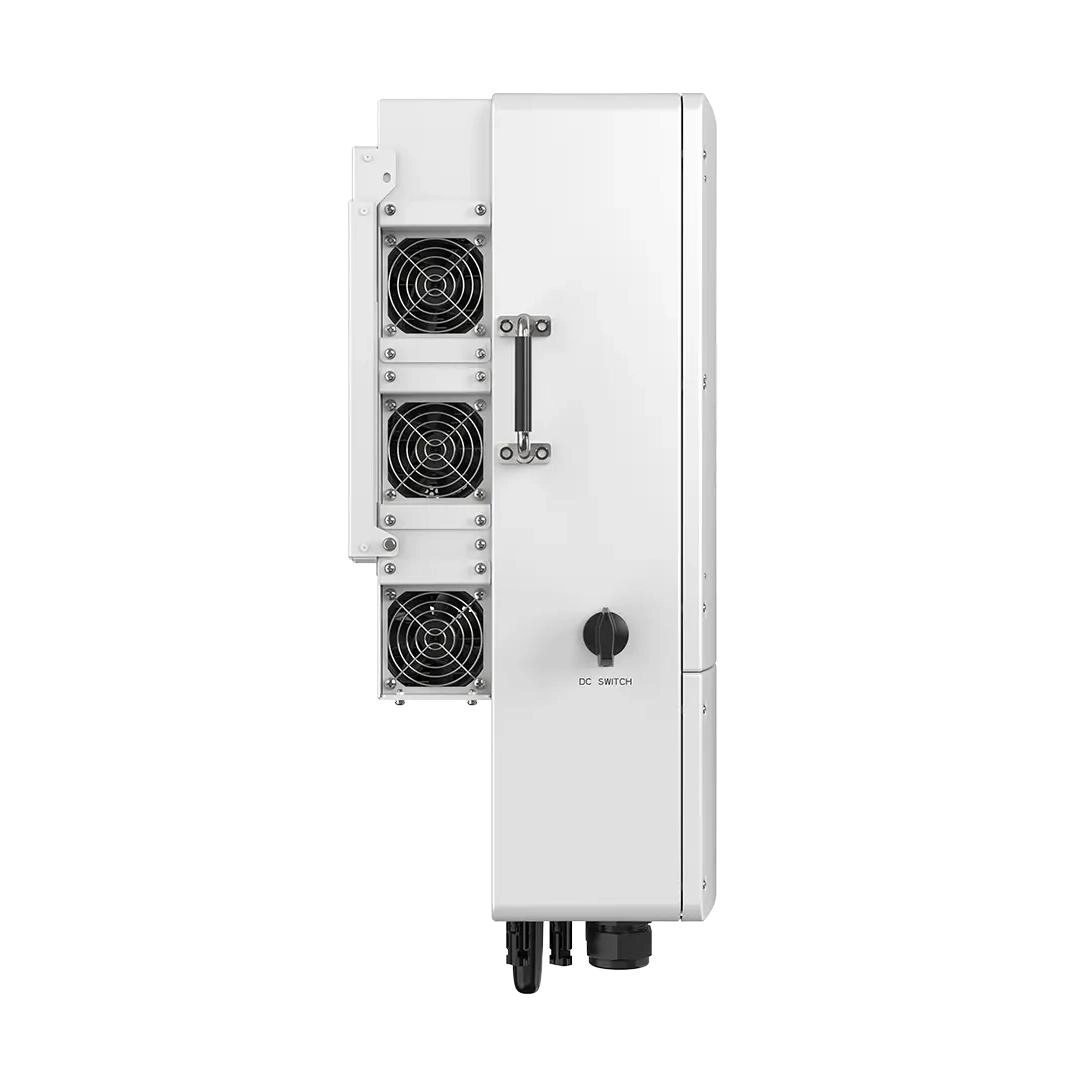

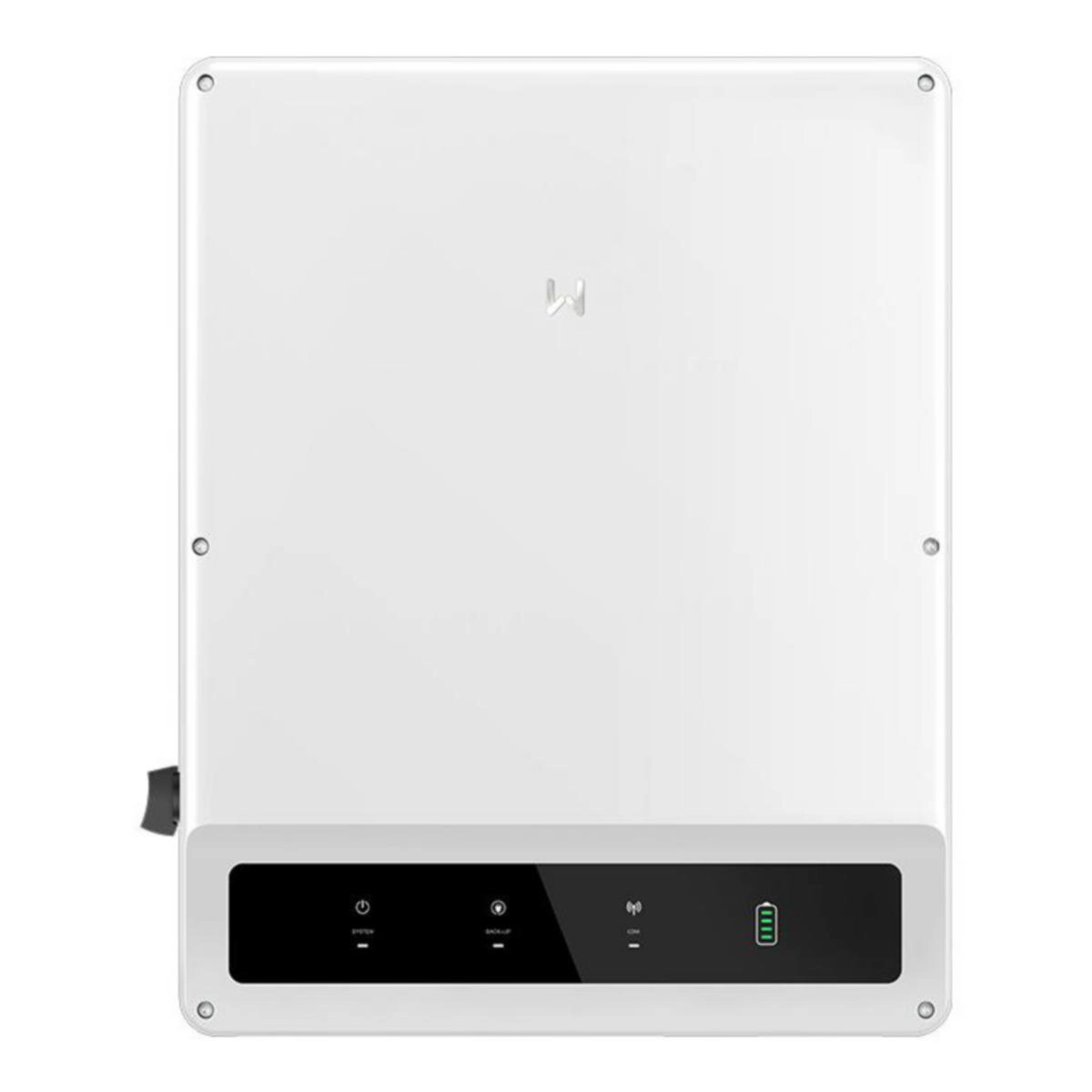

15kW Three-Phase Hybrid Inverter
48V Low-Voltage Battery System
Up to 30kW PV Input
4 Independent MPPTs
20A Maximum MPPT Current per MPPT
2 Independent Battery Inputs
165A + 165A Max. Battery Charge/Discharge Current
15kW Max. Battery Charging Power
16.5kW Max. Battery Discharging Power
<4ms Fast Backup Switching
AI-Driven AFCI 3.0
Type II DC & AC Surge Protection
IP66 Protection
C4 Anti-Corrosion Class
Generator & Large-Load Support
Wi-Fi + LAN + Bluetooth + 4G + RS485 + CAN
LFP (LiFePO₄) / Lead-Acid Battery Compatible
Supports Parallel Systems up to 10 Inverters
The GoodWe GW15K-ET-L-G10 is a 15kW residential hybrid solar solution designed to manage solar energy, battery storage, and grid electricity in an integrated energy system. It is suitable for larger homes and residential applications requiring higher power capacity, efficient energy management, and reliable backup support.
By combining solar generation, battery storage, and grid power, the system helps optimize household energy usage. Solar energy can be used to power household loads, while excess energy can be stored in compatible batteries for later use. During grid interruptions, the system can provide backup power to supported loads, helping maintain essential electrical appliances and systems.
15kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Three-Phase Energy Management
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
High-Capacity Residential Application
15kW power capacity
Hybrid solar energy management
Solar, battery and grid integration
Battery storage support
Backup power capability
Efficient renewable energy utilization
Flexible household energy management
Suitable for high-power residential systems
Large residential homes
High-energy-consumption households
Solar + battery installations
Residential backup power systems
Energy storage applications
Grid-connected hybrid solar systems

Specification | Details |
|---|---|
Model | GW15K-ET-L-G10 |
Product Type | 3-Phase Low-Voltage Hybrid Solar Inverter |
Rated Output Power | 15kW |
Max. PV Input Power | 30kW |
Max. PV Input Voltage | 1000V |
MPPT Operating Voltage | 150–850V |
PV Start-up Voltage | 180V |
Number of MPPTs | 4 |
Max. MPPT Current | 20A × 4 |
Max. MPPT Short-Circuit Current | 26A × 4 |
Max. Efficiency | 97.9% |
Battery Type | LFP (LiFePO₄) / Lead-Acid |
Nominal Battery Voltage | 48V |
Battery Voltage Range | 40–60V |
Battery Inputs | 2 |
Max. Charge Current | 165A + 165A |
Max. Discharge Current | 165A + 165A |
Max. Charging Power | 15kW |
Max. Discharging Power | 16.5kW |
Max. Grid Apparent Power | 16.5kVA |
Backup Switching | <4ms |
DC Surge Protection | Type II |
AC Surge Protection | Type II |
AFCI | Optional, market dependent |
BMS Communication | CAN |
Communication | Wi-Fi, LAN, Bluetooth, 4G, RS485, CAN |
Cooling | Smart Fan Cooling |
Operating Temperature | -35°C to +60°C |
Noise Level | <45dB |
Protection Rating | IP66 |
Anti-Corrosion Class | C4 |
Mounting | Wall Mounted |
Cooling System | Smart Fan Cooling |
Dimensions (W × H × D) | 551 × 756 × 258 mm |
Weight | 49.7 kg |
