GOODWE
12kW Three-Phase Hybrid Inverter
48V Low-Voltage Battery System
Up to 24kW PV Input
3 MPPTs
20A Maximum MPPT Current per MPPT
250A Max. Battery Charge/Discharge Current
12kW Max. Battery Charging Power
13.2kW Max. Battery Discharging Power
<4ms Backup Switching
AI-Driven AFCI 3.0
Up to 150% Unbalanced Output
Generator Compatibility
IP66 Protection
Type II DC & AC Surge Protection
Wi-Fi + LAN + Bluetooth + 4G + RS485 + CAN
LFP (LiFePO₄) / Lead-Acid Battery Compatible
Wall-Mounted Design

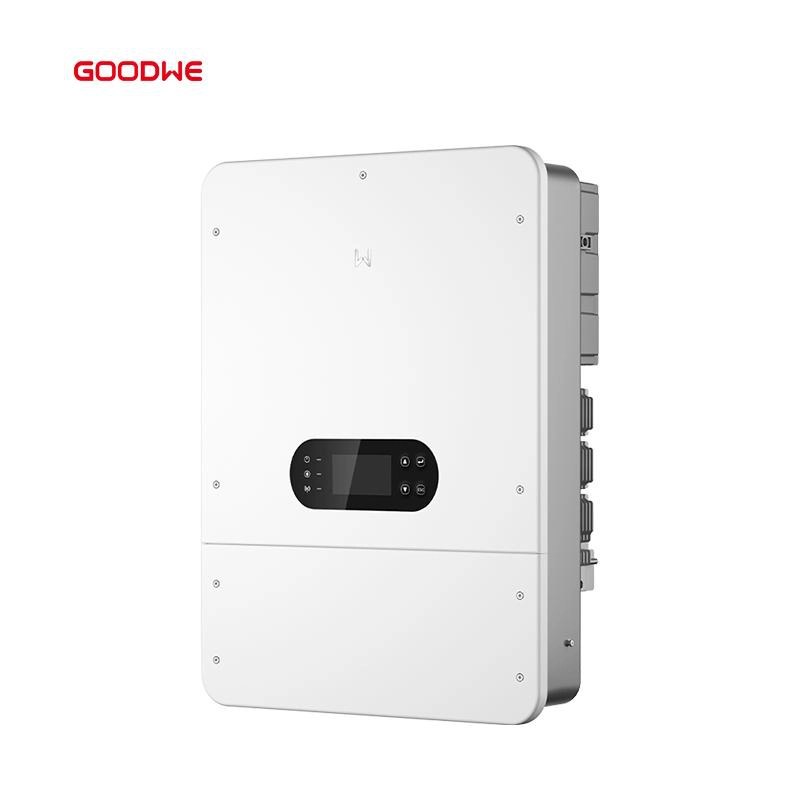

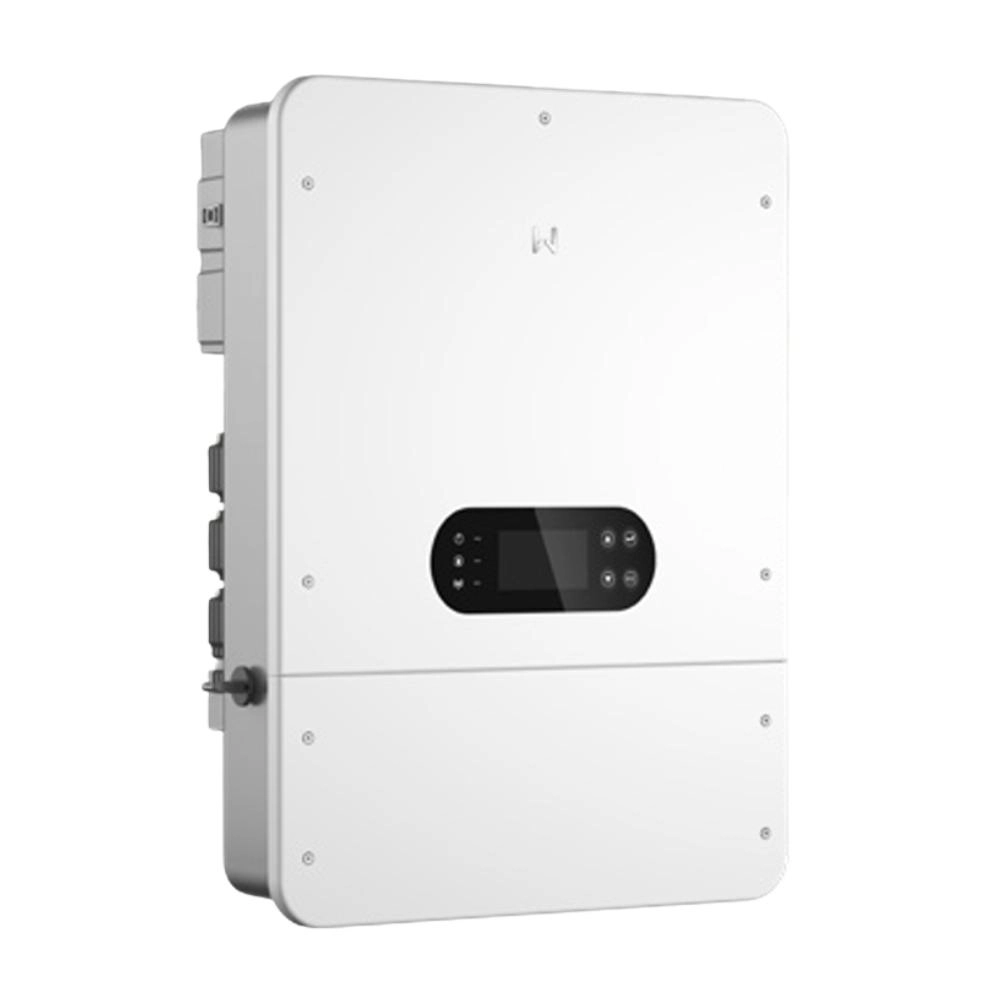

The GoodWe GW12K-ET-L-G10 is a 12kW residential hybrid solar solution designed to manage solar energy, battery storage, and grid electricity in an integrated system. It is suitable for homes requiring higher power capacity, efficient energy management, and reliable backup power.
The system combines solar generation, battery storage, and grid power to help optimize household energy consumption. Solar energy can be used directly for household loads, while surplus energy can be stored in compatible batteries for later use. During grid interruptions, the system can provide backup power to supported loads, helping maintain essential household operations.
12kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Three-Phase Energy Management
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
High-Capacity Residential Application
12kW power capacity
Hybrid solar energy management
Solar, battery and grid integration
Battery storage support
Backup power capability
Efficient renewable energy utilization
Flexible household energy management
Suitable for high-power residential systems
Large residential homes
High-energy-consumption households
Solar + battery installations
Residential backup power systems
Energy storage applications
Grid-connected hybrid solar systems

Specification | Details |
|---|---|
Model | GW12K-ET-L-G10 |
Product Type | 3-Phase Hybrid Solar Inverter |
Rated Output Power | 12kW |
Max. PV Input Power | 24kW |
Max. PV Input Voltage | 1000V |
MPPT Operating Voltage | 150–850V |
PV Start-up Voltage | 180V |
Number of MPPTs | 3 |
Max. MPPT Current | 20A / 20A / 20A |
Max. MPPT Short-Circuit Current | 26A / 26A / 26A |
Number of Strings per MPPT | 1 / 1 / 1 |
Battery Type | LFP (LiFePO₄) / Lead-Acid |
Nominal Battery Voltage | 48V |
Battery Voltage Range | 40–60V |
Battery Inputs | 1 |
Max. Charge Current | 250A |
Max. Discharge Current | 250A |
Max. Charging Power | 12kW |
Max. Discharging Power | 13.2kW |
Max. Grid Apparent Power | 13.2kVA |
Nominal Grid Voltage | 400/380V, 3L/N/PE |
Grid Frequency | 50/60Hz |
Max. Current to Grid | 19.1A @ 230V / 20A @ 220V |
Max. Grid Input Current | 70A |
Max. Efficiency | 97.8% |
Backup Switching | <4ms |
DC Surge Protection | Type II |
AC Surge Protection | Type II |
AFCI | Optional* |
Communication | Wi-Fi + LAN + Bluetooth, 4G, RS485, CAN |
BMS Communication | CAN |
Cooling | Smart Fan Cooling |
Operating Temperature | -35°C to +60°C |
Noise Level | <45dB |
Protection Rating | IP66 |
Dimensions (W × H × D) | 551 × 756 × 258 mm |
Weight | 45.3 kg |
Mounting | Wall Mounted |
