GOODWE
RESIDENTIAL HYBRID SOLUTION- GW12K-ES-C10
Barcode:
25550971
Key Features
12kW rated output power
Single-phase hybrid inverter
48V low-voltage battery system
Supports Li-Ion & Lead-acid batteries
24kW maximum PV input
2 MPPTs
32A maximum input current per MPPT
13.2kVA maximum grid output
12kVA backup nominal output
13.2kW maximum battery discharge power
200% PV oversizing
<4 ms backup switching
IP66 protection
Optional AI-driven AFCI
3-in-1 port for generator, smart loads and PV inverter
RS485, Wi-Fi, LAN & Bluetooth
Supports up to 6 units in parallel
Suitable for large residential solar + battery storage systems
Share:
Product Description:

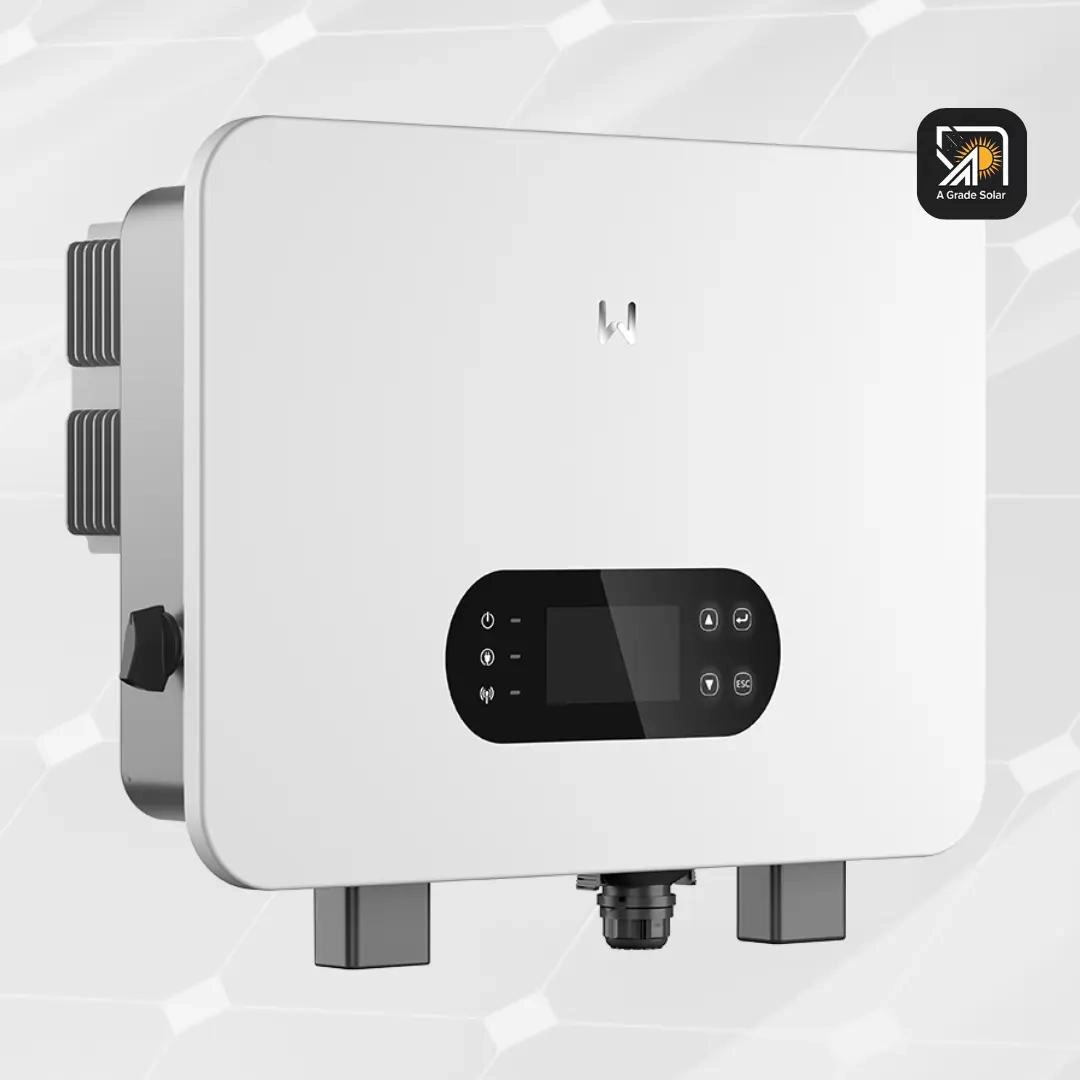

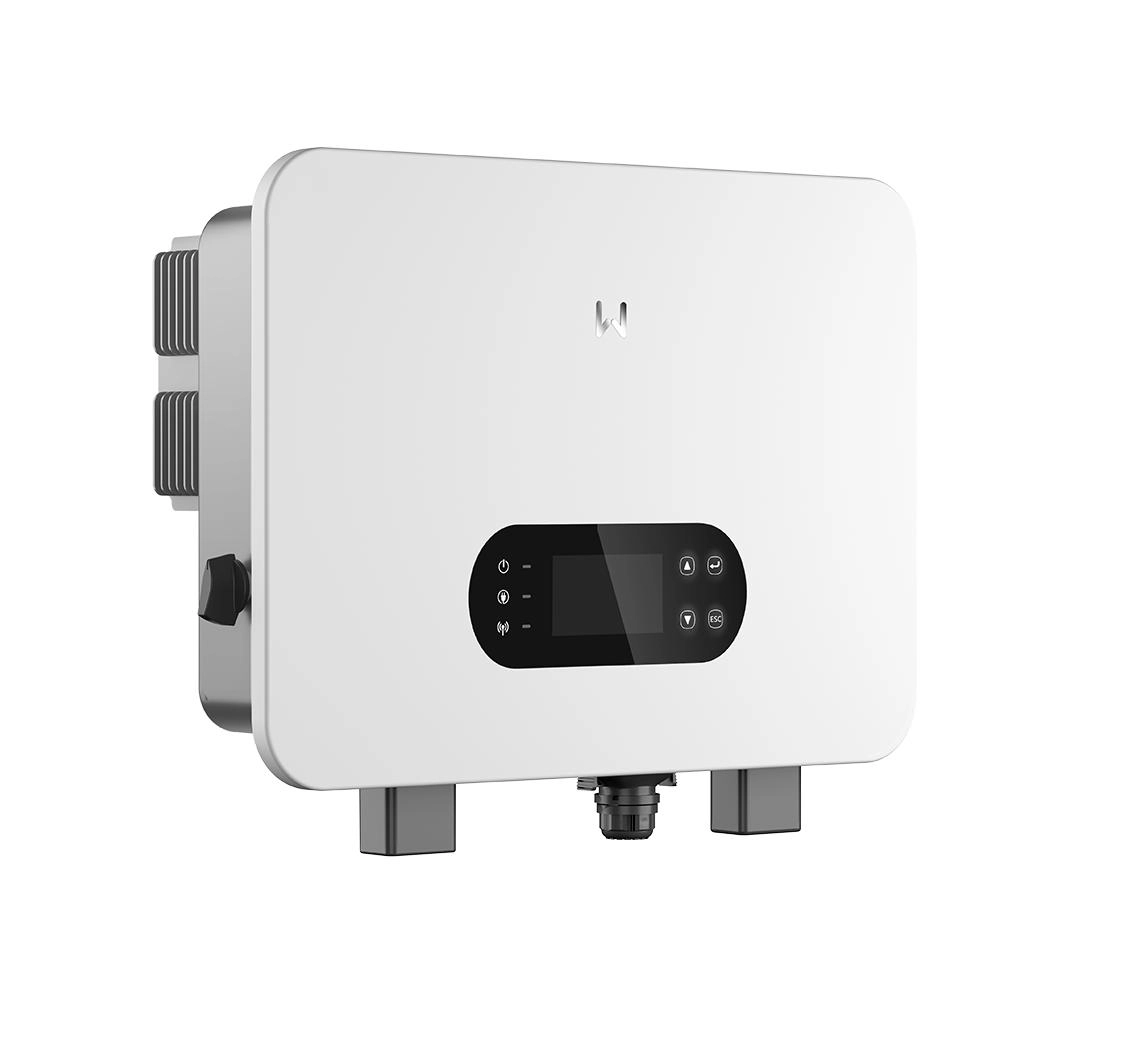

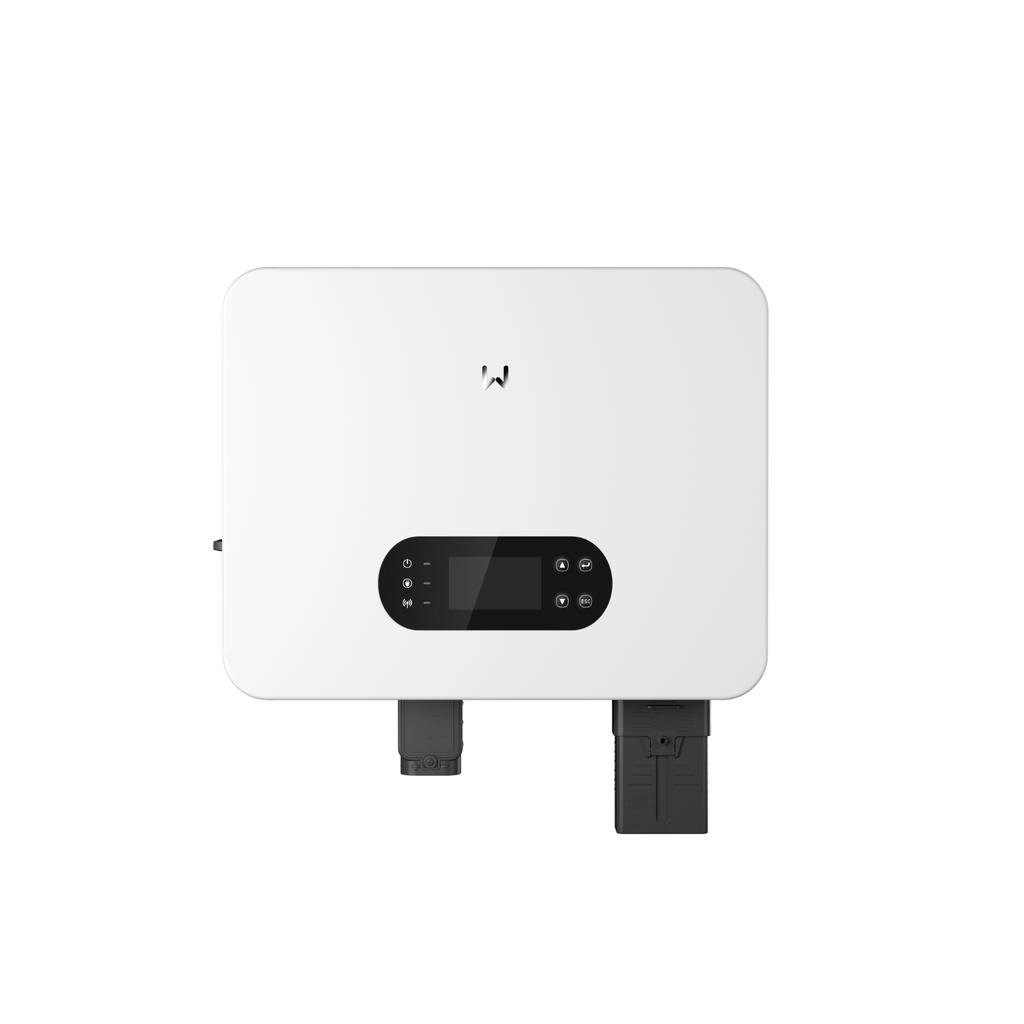

GoodWe GW12K-ES-C10 Residential Hybrid Solar Solution
Product Description
The GoodWe GW12K-ES-C10 is a 12kW residential hybrid solar solution designed to efficiently manage solar energy, battery storage, and grid electricity. It provides a flexible energy management solution for homes that want to maximize solar energy usage while maintaining reliable backup power.
The system combines solar generation, battery storage, and grid power in an integrated solution. Excess solar energy can be stored for later use, helping households improve energy utilization and reduce dependence on grid electricity. With its hybrid architecture, it is suitable for modern residential solar and backup power applications.
Key Features
12kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
Flexible Residential Application
Practical & Reliable Design
Product Highlights
12kW power capacity
Hybrid solar energy management
Supports battery energy storage
Efficient solar power utilization
Backup power support
Flexible grid integration
Suitable for residential energy systems
Ideal For
Large residential homes
Solar + battery installations
Residential backup power systems
Energy storage applications
Homes requiring higher power capacity
Grid-connected hybrid solar systems
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW12K-ES-C10 |
Type | Single-Phase Hybrid Inverter |
Rated Output Power | 12 kW |
Max. PV Input Power | 24 kW |
Max. PV Input Voltage | 600 V |
MPPT Operating Range | 60–550 V |
Start-up Voltage | 58 V |
Max. Input Current / MPPT | 32 A / 32 A |
Max. Short-Circuit Current / MPPT | 48 A / 48 A |
Number of MPPTs | 2 |
Strings per MPPT | 2 / 2 |
Battery Type | Li-Ion / Lead-acid |
Nominal Battery Voltage | 48 V |
Battery Voltage Range | 40–60 V |
Max. Charging Current | 240 A |
Max. Discharging Current | 240 A |
Max. Charging Power | 12 kW |
Max. Discharging Power | 13.2 kW |
Max. Grid Output | 13.2 kVA |
Max. Efficiency | 97.6% |
Backup Nominal Output | 12 kVA |
Nominal AC Voltage | 220 / 230 / 240 V |
Grid Frequency | 50 / 60 Hz |
Weight | 29.0 kg |
Protection | IP66 |
Communication | RS485, Wi-Fi, LAN, Bluetooth |
BMS Communication | CAN |
Application | Residential Hybrid Solar + Battery Storage |
