GOODWE
RESIDENTIAL HYBRID SOLUTION- GW10K-ES-C10
Barcode:
24658258
Key Features
10kW single-phase hybrid inverter
48V low-voltage battery system
Supports Li-Ion & Lead-acid batteries
20kW maximum PV input
2 MPPTs
32A maximum PV input current per MPPT
11kVA maximum grid output
10kVA backup output
11kW maximum battery discharge power
60–550V MPPT range
IP66 protection
3-in-1 port for generator, smart loads and on-grid PV inverter
Supports micro-grid operation
RS485, Wi-Fi, LAN & Bluetooth
Suitable for large residential solar + battery-storage systems
Share:
Product Description:

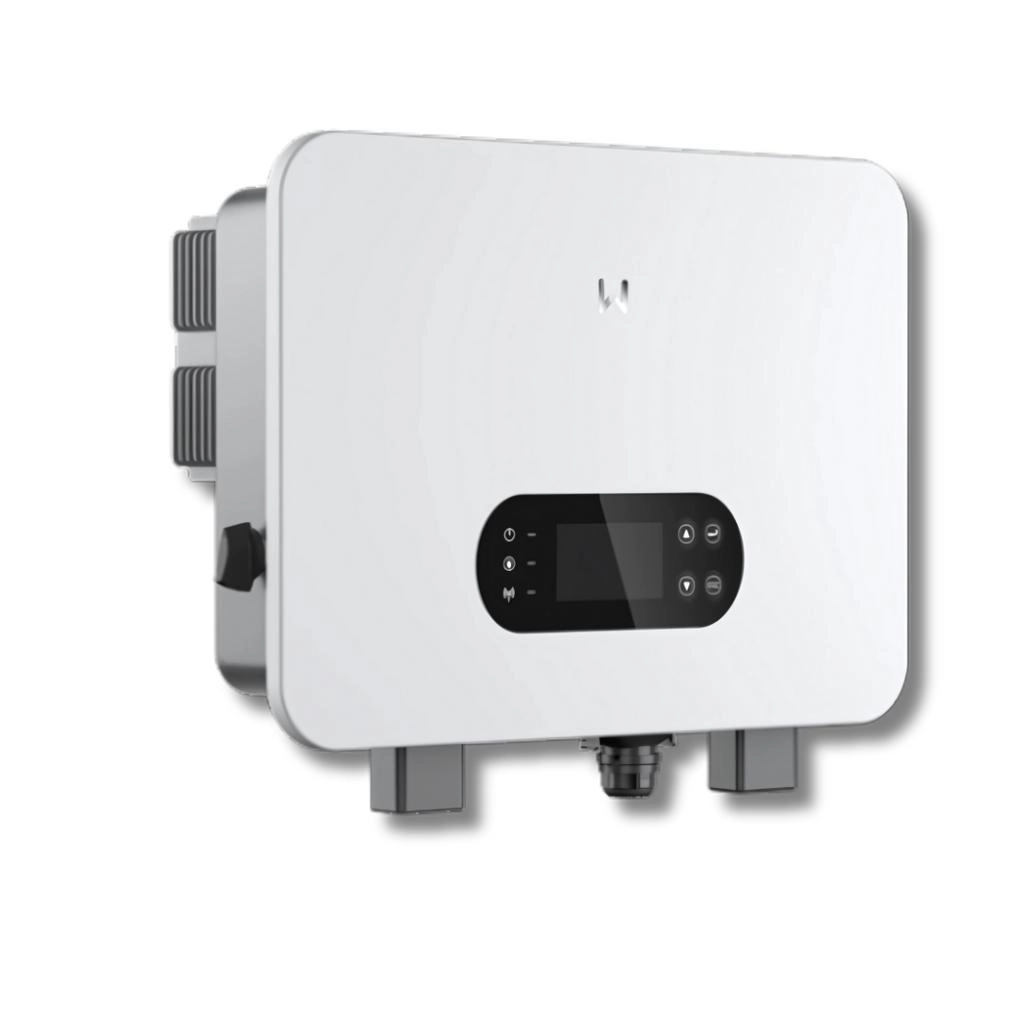

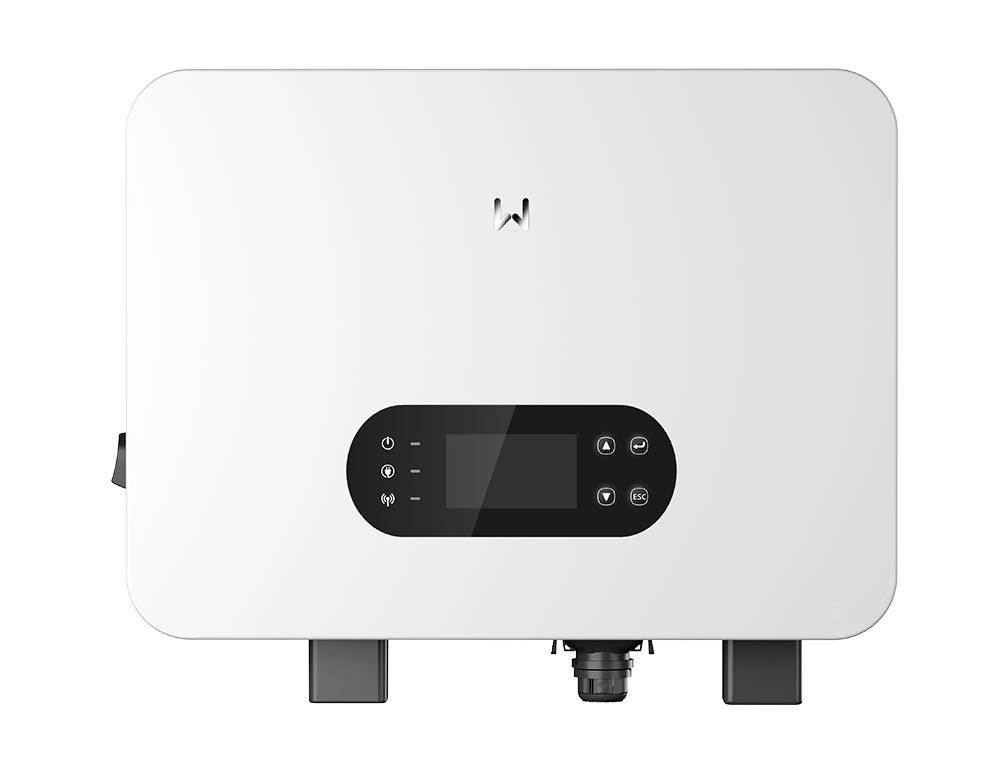

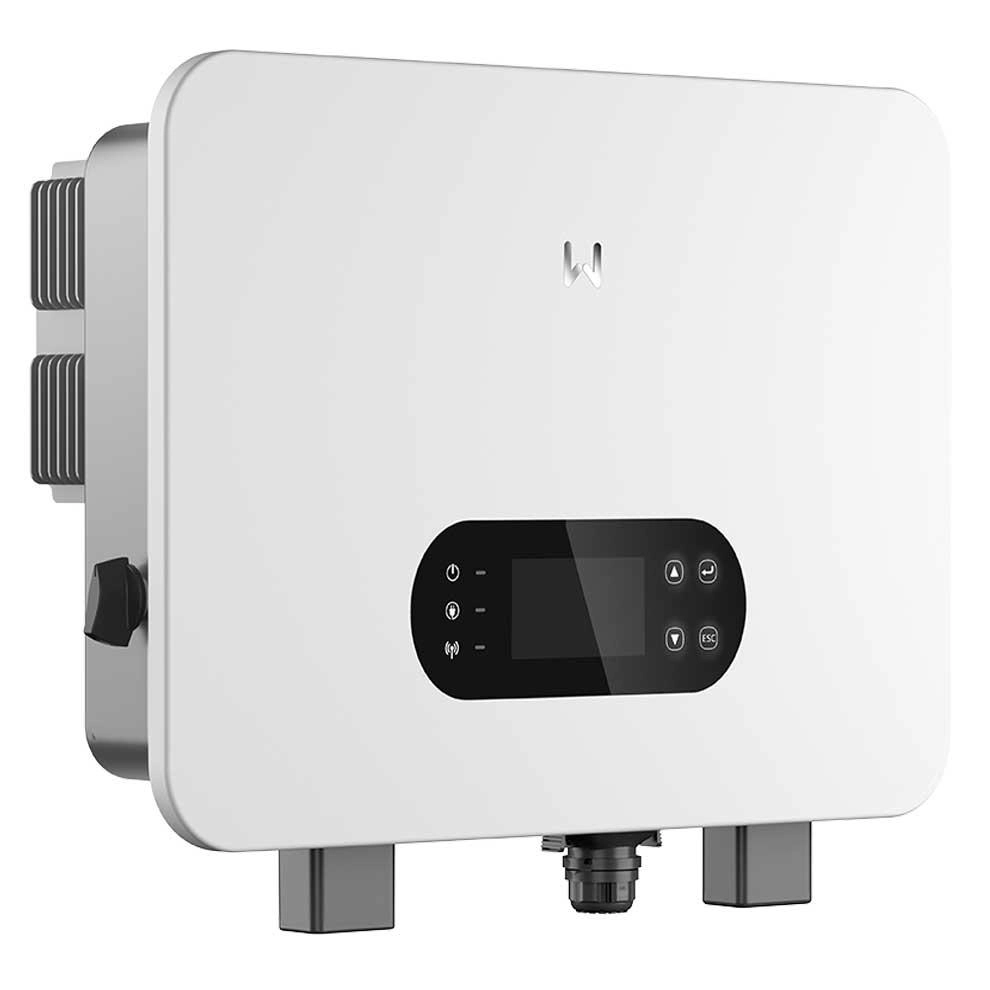

GoodWe GW10K-ES-C10 Residential Hybrid Solar Solution
Product Description
The GoodWe GW10K-ES-C10 is a 10kW residential hybrid solar solution designed to manage solar energy, battery storage, and grid electricity in one integrated system. It helps households maximize the use of solar power while providing flexible energy management and backup power support.
The system can work with solar panels, battery storage, and the electrical grid, allowing homeowners to store excess solar energy and use it when needed. This makes it suitable for residential applications where energy efficiency, reliable backup, and greater control over electricity usage are important.
Key Features
10kW Hybrid Solar Solution
Solar + Battery + Grid Integration
Battery Energy Storage Support
Backup Power Capability
Smart Energy Management
Efficient Solar Energy Utilization
Flexible Residential Application
Practical & Reliable Design
Product Highlights
10kW power capacity
Hybrid solar energy management
Supports battery energy storage
Efficient use of solar power
Backup power support
Flexible grid interaction
Suitable for residential solar systems
Ideal For
Large residential homes
Solar + battery systems
Residential backup power
Energy storage applications
Homes with frequent power interruptions
Grid-connected hybrid solar installations
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW10K-ES-C10 |
Type | Single-Phase Hybrid Inverter |
Rated Output Power | 10 kW |
Max. PV Input Power | 20 kW |
Max. PV Input Voltage | 600 V |
MPPT Operating Range | 60–550 V |
Start-up Voltage | 58 V |
Nominal PV Input Voltage | 360 V |
Max. Input Current / MPPT | 32 A / 32 A |
Max. Short-Circuit Current / MPPT | 48 A / 48 A |
Number of MPPTs | 2 |
Strings per MPPT | 2 / 2 |
Battery Type | Li-Ion / Lead-acid |
Nominal Battery Voltage | 48 V |
Battery Voltage Range | 40–60 V |
Max. Charging Current | 200 A |
Max. Discharging Current | 200 A |
Max. Charging Power | 10 kW |
Max. Discharging Power | 11 kW |
Nominal Grid Output | 10 kVA |
Max. Grid Output | 11 kVA |
Backup Nominal Output | 10 kVA |
AC Voltage | 220 / 230 / 240 V |
Grid Frequency | 50 / 60 Hz |
Max. Efficiency | Up to 97.6% |
Weight | 29.0 kg |
Cooling System | Smart Fan Cooling |
Protection Rating | IP66 |
Communication | RS485, Wi-Fi, LAN, Bluetooth |
BMS Communication | CAN |
Application | Residential Hybrid Solar + Battery Storage |
