GOODWE
RESIDENTIAL BATTERY SOLUTION- Lynx A 5.0-30
Barcode:
35456219
Key Features
5.12kWh Nominal Battery Capacity
5kWh Usable Energy
LiFePO₄ (LFP) Battery Chemistry
43.2–58.24V Operating Voltage
150A Max. Continuous Discharge Current
Up to 7.2kW Continuous Discharge Power
Up to 30 Units in Parallel
Scalable up to 150kWh
6000+ Cycle Life at 70% EOL
CAN Communication
Compact & Modular Design
19-inch Rack / Floor / Wall Mounting
IP20 Protection
Remote Diagnosis & Firmware Updates
Compatible with GoodWe Residential Storage Inverters
Share:
Product Description:

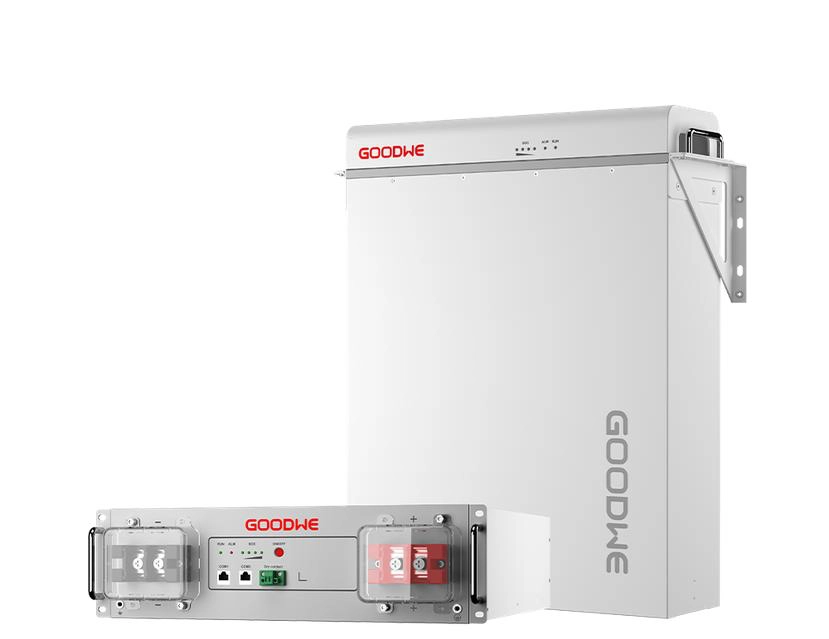

GoodWe Lynx A 5.0-30 Residential Battery Solution
Product Description
The GoodWe Lynx A 5.0-30 is a high-capacity residential battery solution designed to store solar energy and provide flexible power management for modern homes. It helps households store excess energy generated by solar panels and use it when solar production is low or electricity from the grid is unavailable.
With its scalable energy storage design, the Lynx A 5.0-30 can be integrated with compatible GoodWe solar and hybrid inverter systems. It provides a practical solution for solar self-consumption, energy storage, and backup power, helping homeowners make better use of renewable energy.
Key Features
Residential Battery Energy Storage Solution
5.0kWh Battery Module
Scalable Energy Storage Capacity
Solar Energy Storage
Backup Power Support
Efficient Energy Management
Flexible System Configuration
Suitable for Residential Solar Systems
Product Highlights
5.0kWh battery module
Scalable battery storage system
Stores excess solar energy
Supports backup power applications
Helps maximize solar self-consumption
Compatible with selected GoodWe systems
Practical solution for residential energy storage
Ideal For
Residential solar PV systems
Home battery storage
Solar backup power
Energy storage applications
Homes seeking greater energy independence
Solar + battery installations
product included:
Specifications:
Specification | Details |
|---|---|
Model | LX A5.0-30 |
Series | Lynx A G3 |
Product Type | Residential Low-Voltage Battery |
Nominal Battery Energy | 5.12kWh |
Usable Energy | 5kWh |
Battery Chemistry | LFP (LiFePO₄) |
Operating Voltage Range | 43.20–58.24V |
Nominal Charge Current | 60A |
Max. Continuous Charge Current | 90A |
Nominal Discharge Current | 100A |
Max. Continuous Discharge Current | 150A |
Max. Pulse Discharge Current | <200A (30 sec) |
Max. Continuous Discharge Power | 7.2kW |
Communication | CAN |
Operating Temperature – Charge | 0°C to 55°C |
Operating Temperature – Discharge | -20°C to 55°C |
Max. Operating Altitude | 4,000m |
Weight | 44kg |
Dimensions | 442 × 133 × 520mm* |
Protection Rating | IP20 |
Installation | 19-inch Rack / Floor / Wall Mounted |
Maximum Parallel Units | 30 |
Maximum Scalable Energy | 150kWh |
Application | On-Grid / Backup / Off-Grid |
Contact for more details
Call now: 01711305205
