GOODWE
RESIDENTIAL BATTERY SOLUTION- LX A 5.0-10
Barcode:
34489276
Key Features
5kWh Usable Energy
51.2V Low-Voltage Battery
LiFePO₄ (LFP) Chemistry
60A Nominal Charge/Discharge Current
Cell-to-Pack (CTP) Design
Modular & Scalable Design
CAN Communication
Remote Diagnosis & Software Upgrade
Automatic Module Identification
Cabinet / Floor / Wall Mounting
IP21 Protection
Designed for GoodWe Residential Inverters
Suitable for Solar Energy Storage & Backup
Share:
Product Description:

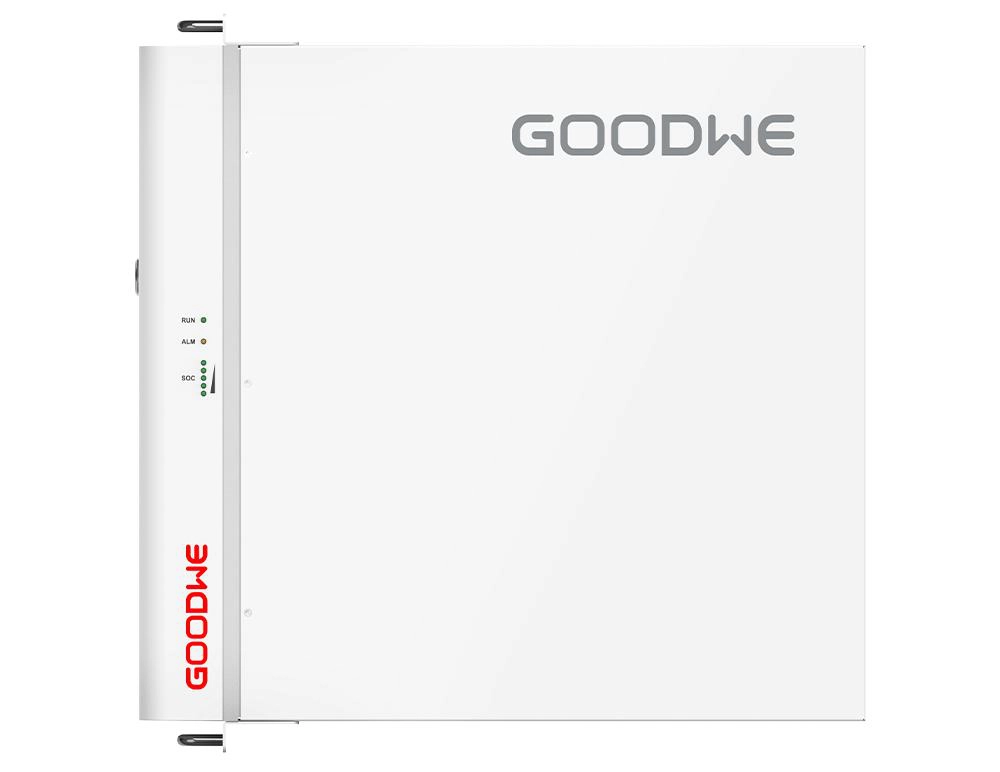

GoodWe LX A 5.0-10 Residential Battery Solution
Product Description
The GoodWe LX A 5.0-10 is a residential battery solution designed to provide reliable energy storage for home solar systems. It allows excess solar energy to be stored and used when needed, helping households improve solar energy utilization and reduce dependence on grid electricity.
Designed for residential energy storage applications, the battery can work as part of a compatible solar energy system to support daily energy consumption, backup power, and greater energy independence. Its practical design makes it suitable for modern homes looking to add battery storage to their renewable energy setup.
Key Features
Residential Energy Storage Solution
5.0kWh Battery Module
Scalable Battery Capacity
Solar Energy Storage
Backup Power Support
Efficient Energy Utilization
Compact & Practical Design
Suitable for Residential Applications
Product Highlights
5.0kWh battery capacity
Designed for residential energy storage
Stores excess solar energy for later use
Supports backup power applications
Helps maximize solar energy utilization
Scalable storage solution
Suitable for compatible GoodWe solar systems
Ideal For
Residential solar systems
Home battery storage
Solar energy backup
Energy storage applications
Homes with solar PV systems
Reducing reliance on grid electricity
product included:
Specifications:
Specification | Details |
|---|---|
Model | LX A5.0-10 |
Product Type | Residential Low-Voltage Battery |
Battery Series | Lynx Home A Series |
Usable Energy | 5.0 kWh |
Battery Chemistry | LFP (LiFePO₄) |
Nominal Voltage | 51.2V |
Operating Voltage Range | 47.5–57.6V |
Nominal Charge Current | 60A |
Nominal Discharge Current | 60A |
Communication | CAN |
Protection Rating | IP21 |
Mounting | Cabinet / Floor Stacked / Wall Mounted |
Application | Residential Solar Energy Storage |
Compatible Inverters | Compatible GoodWe Residential Storage Inverters |
Warranty | 5 Years Product + 10 Years Performance |
Ingress Protection Rating | IP21 |
Weight | 40 kg |
Max Continuous Discharge Current | 60 A |
