RESIDENTIAL BATTERY SOLUTION- GW16.1- BAT- LV-G10
Barcode:
35926237
Key Features
16.1kWh-Class Low-Voltage Battery
≥14.9kWh Usable Energy
51.2V Nominal Voltage
LiFePO₄ (LFP) Battery Chemistry
314Ah Battery Cells
157A Max. Continuous Charging Current
200A Max. Continuous Discharging Current
10kW Max. Output Power
16kW Peak Output Power for 15 Seconds
IP65 Protection
6000+ Cycle Life
Up to 30 Units Parallel
CAN Communication
Floor & Wall Mounting
Built-in Safety & Fire-Suppression Options
Compatible with GoodWe Low-Voltage Inverters
Share:
Product Description:

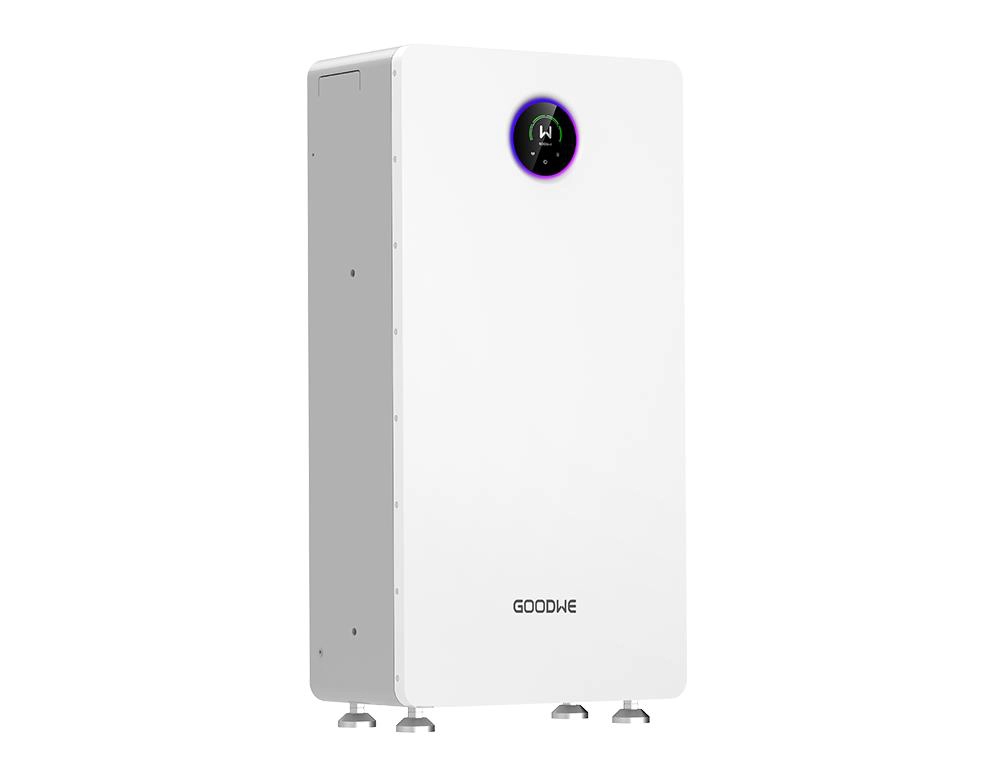

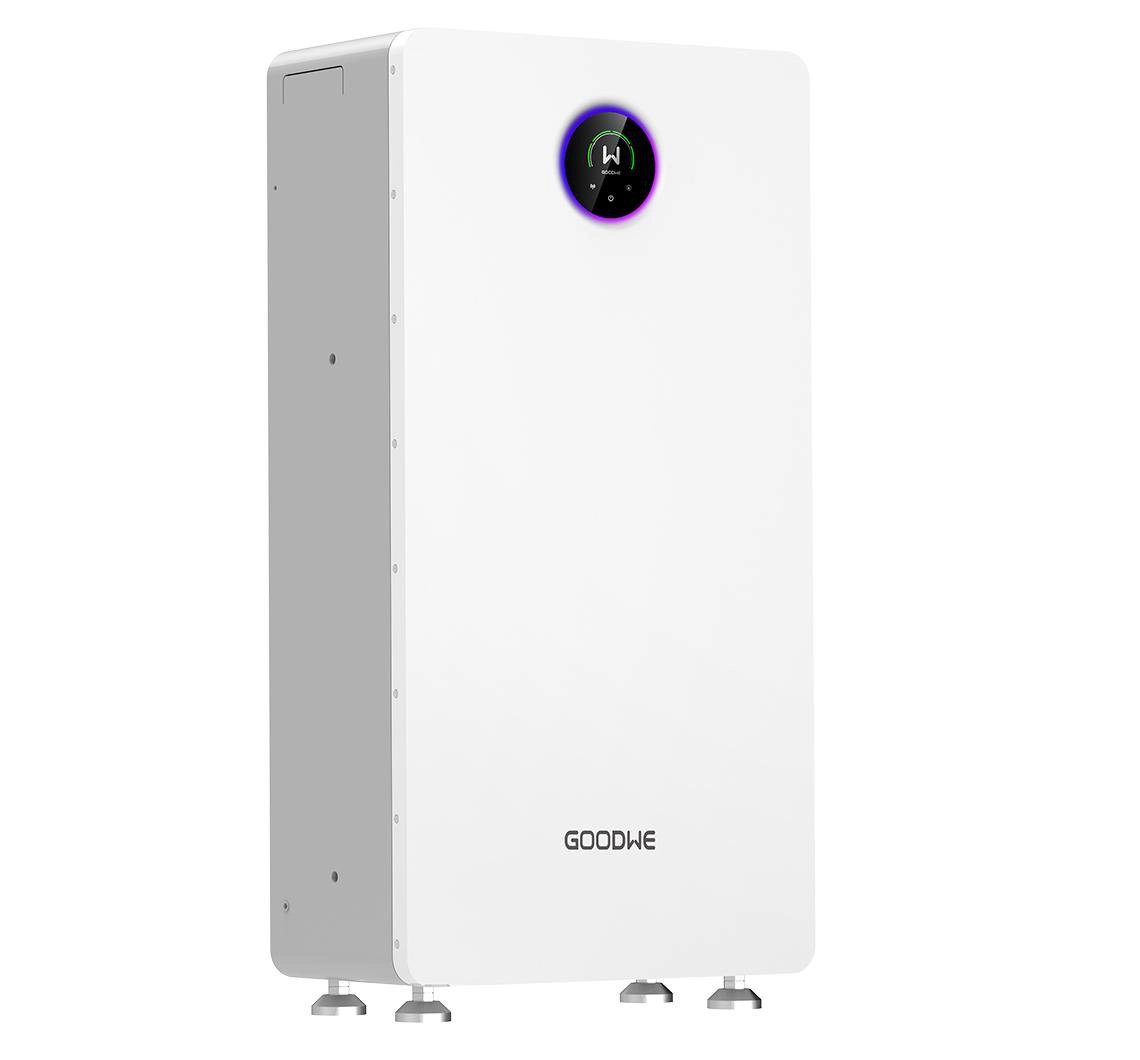

GoodWe GW16.1-BAT-LV-G10 Residential Battery Solution
Product Description
The GoodWe GW16.1-BAT-LV-G10 is a residential battery energy storage solution designed to store and manage electricity for modern home solar systems. With a 16.1kWh storage capacity, it allows households to store excess solar energy and use it when solar generation is low or grid power is unavailable.
Designed for integration with compatible solar and hybrid inverter systems, this battery solution supports efficient energy utilization, solar self-consumption, and backup power applications. It is a practical choice for households looking to increase their use of renewable energy and improve energy independence.
Key Features
16.1kWh Energy Storage Capacity
Residential Battery Storage Solution
Low-Voltage Battery System
Solar Energy Storage
Backup Power Support
Efficient Energy Management
Scalable Energy Storage
Designed for Residential Applications
Product Highlights
16.1kWh battery capacity
Low-voltage energy storage solution
Stores excess solar energy for later use
Supports residential backup applications
Helps maximize solar self-consumption
Suitable for compatible GoodWe systems
Practical solution for home energy storage
Ideal For
Residential solar PV systems
Home battery energy storage
Solar backup power systems
Energy storage applications
Homes with high energy demand
Solar + battery installations
product included:
Specifications:
Specification | Details |
|---|---|
Model | GW16.1-BAT-LV-G10 |
Series | Lynx A G4 |
Product Type | Low-Voltage Residential Battery |
Usable Energy | ≥14.9kWh |
Nominal Voltage | 51.2V |
Voltage Range | 45.92–57.76V |
Battery Chemistry | LiFePO₄ (LFP) |
Max. Continuous Charging Current | 157A |
Max. Continuous Discharging Current | 200A |
Max. Input Power | 8kW |
Max. Output Power | 10kW |
Peak Output Power | 16kW / 15 sec |
Communication | CAN |
Cycle Life | ≥6000 cycles |
Scalability | Up to 30 units in parallel |
Protection Rating | IP65 |
Charging Temperature | 0°C to 55°C |
Discharging Temperature | -20°C to 55°C |
Storage Temperature | -20°C to 45°C |
Max. Operating Altitude | 4,000m |
Dimensions | ≤470 × 895 × 245mm |
Weight | ≤122kg |
Mounting | Wall-Mounted / Floor-Mounted |
Safety Certifications | IEC 62619, IEC 60730, IEC 63056, CE |
Transportation Certification | UN38.3, MSDS |
