C&I BATTERY SOLUTION- GW 51.2-BAT-G10
Barcode:
42199447
Key Features
51.2kWh nominal capacity
50kWh usable energy
High-voltage LFP (LiFePO₄) battery
512V nominal voltage
459.2–577.6V operating voltage
1C charging / 1.1C discharging
100A maximum charging current
110A maximum discharging current
51.2kW maximum charging power
56.3kW maximum discharging power
6,000-cycle life
100% depth of discharge
96% round-trip efficiency

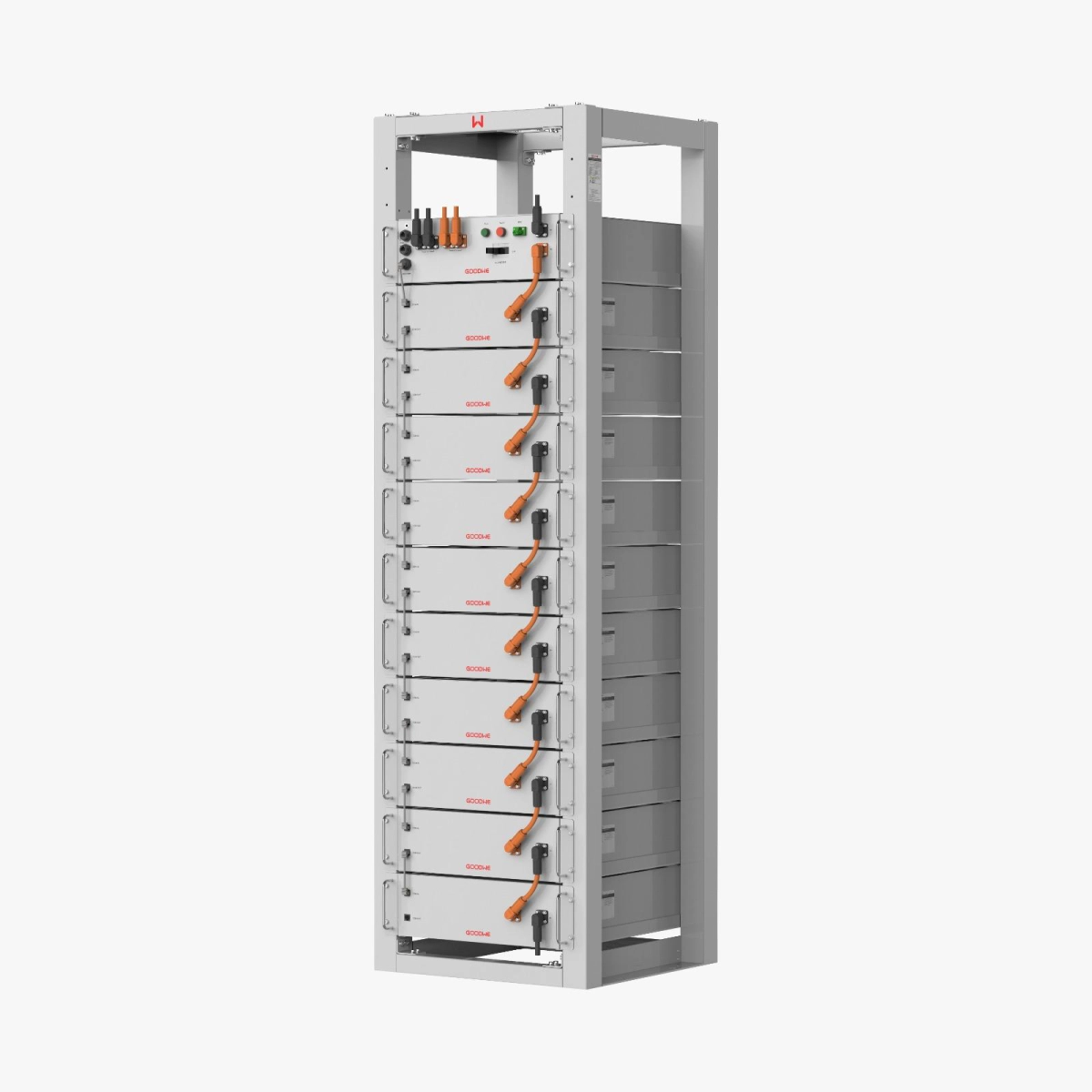

Modular 5.12kWh battery packs
Up to 6 racks in parallel
Natural cooling / fanless design
CAN communication
Optional RS485
Pack-level aerosol fire suppression available
Designed for C&I energy-storage applications
Share:
Product Description:

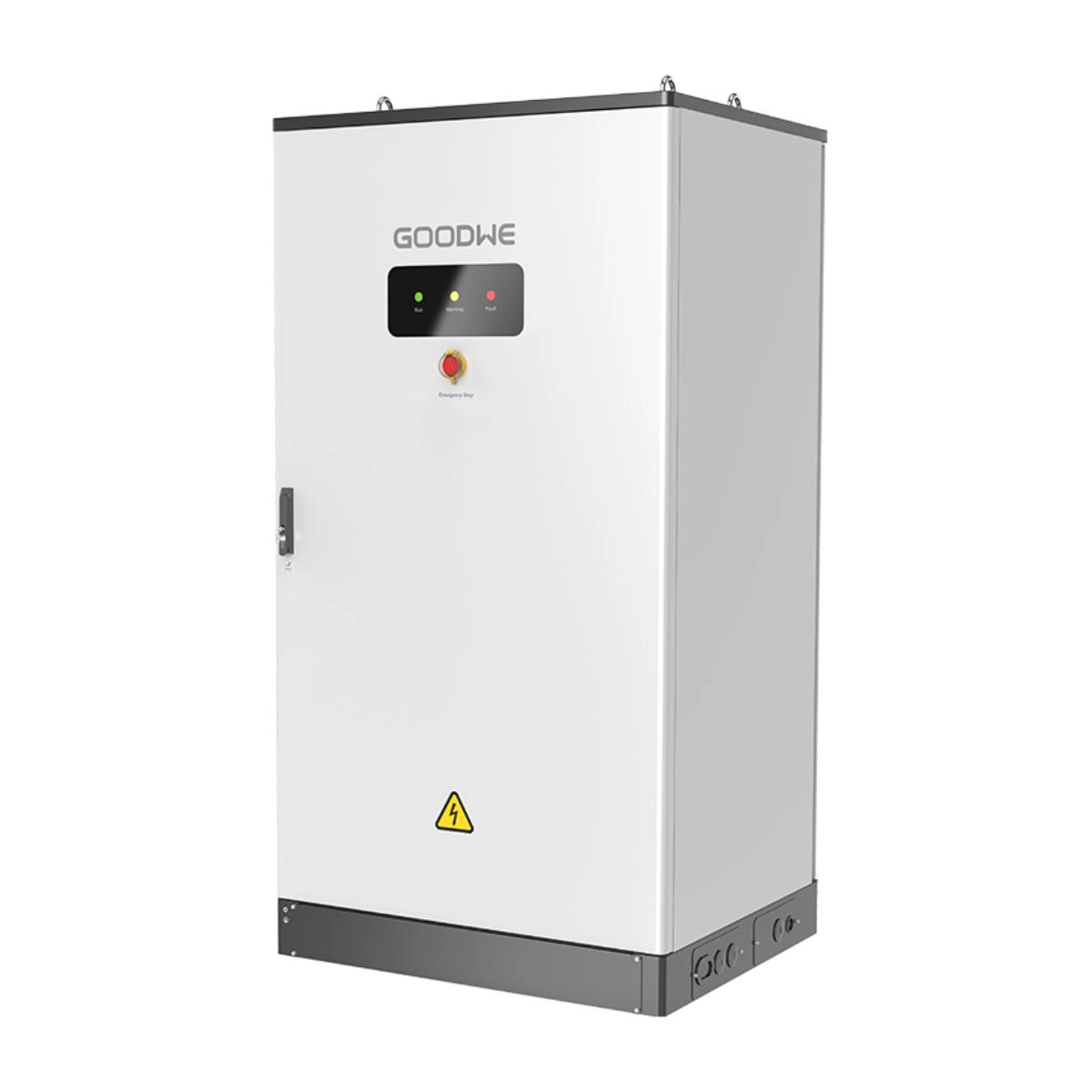

GoodWe GW 51.2-BAT-G10 C&I Battery Solution
Product Description
The GoodWe GW 51.2-BAT-G10 is a 51.2kWh commercial and industrial (C&I) battery energy storage solution designed to store and manage electrical energy for commercial and industrial applications. It can store excess energy generated by solar PV systems and make that energy available when needed.

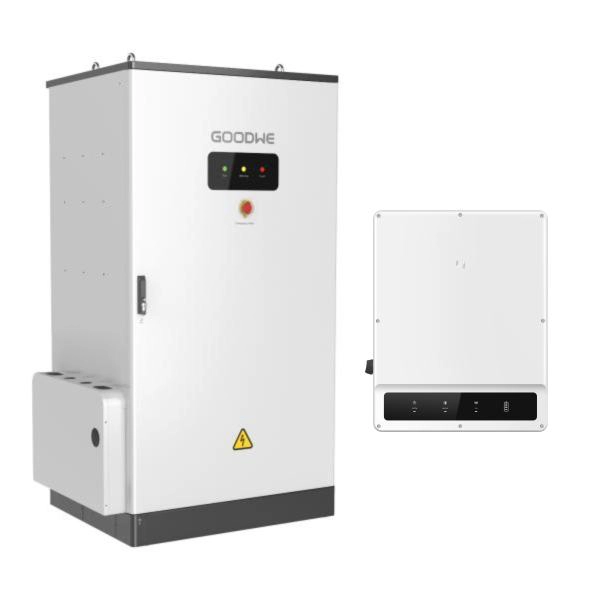

Designed for integration with compatible GoodWe energy storage and hybrid systems, the battery solution supports solar energy storage, backup power, and flexible energy management. It can help businesses optimize their use of renewable energy and improve the overall flexibility of their power system.
Key Features
51.2kWh Battery Energy Storage
Commercial & Industrial Application
Solar Energy Storage
Battery Energy Storage System
Backup Power Support
Efficient Energy Management
Scalable Energy Storage
Designed for C&I Solar Systems
Product Highlights
51.2kWh energy storage capacity
Designed for commercial & industrial applications
Stores excess solar energy for later use
Supports backup power applications
Helps optimize renewable energy utilization
Scalable energy storage configuration
Suitable for compatible GoodWe systems
Practical solution for high-demand energy storage
Ideal For
Commercial buildings
Industrial facilities
Factories and warehouses
Commercial solar PV systems
C&I battery energy storage systems
Solar + battery installations
Backup and energy management applications
product included:
Specifications:
Specification | GW51.2-BAT-I-G10 |
|---|---|
Product Type | C&I High-Voltage Battery |
Series | GoodWe BAT-S |
Battery Chemistry | LFP (LiFePO₄) |
Nominal Energy | 51.2 kWh |
Usable Energy | 50.0 kWh |
Nominal Voltage | 512 V |
Operating Voltage Range | 459.2–577.6 V |
Battery Capacity | 100 Ah |
Battery Pack Model | GW5.1-PACK-I-G10 |
Pack Nominal Energy | 5.12 kWh |
Number of Packs | 10 |
Maximum Charge Current | 100 A |
Maximum Discharge Current | 110 A |
Maximum Charge Power | 51.2 kW |
Maximum Discharge Power | 56.3 kW |
Charge Rate | 1C |
Discharge Rate | 1.1C |
Depth of Discharge | 100% |
Cycle Life | 6,000 cycles |
Round-Trip Efficiency | 96% |
Charging Temperature | 0°C to +55°C |
Discharging Temperature | -20°C to +55°C |
General Operating Temperature | 0°C to +40°C |
Storage Temperature | 35–45°C (<6 months); -20–35°C (<1 year) |
Relative Humidity | 5–85%, non-condensing |
Maximum Operating Altitude | 3,000 m |
Cooling | Natural Cooling |
Communication | CAN; RS485 optional |
User Interface | LED |
Protection Rating | IP20 |
Fire Safety | Aerosol, pack-level — optional |
Dimensions (W × H × D) | 481 × 1,615 × 552 mm |
Weight | 472 kg |
Parallel Configuration | Up to 6 racks |
Maximum Parallel Capacity | 337.8 kWh |
